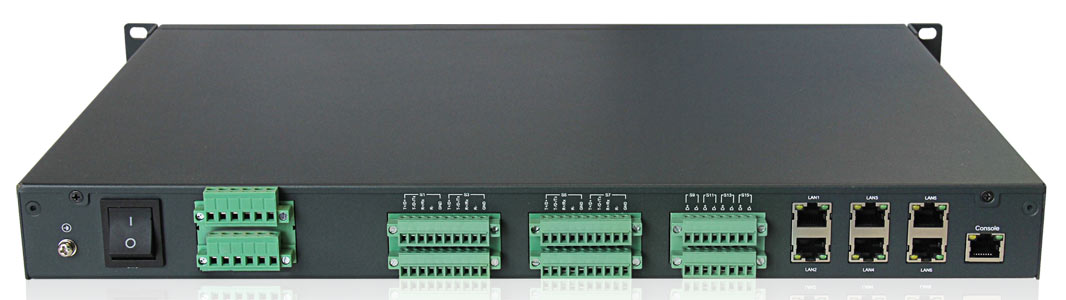

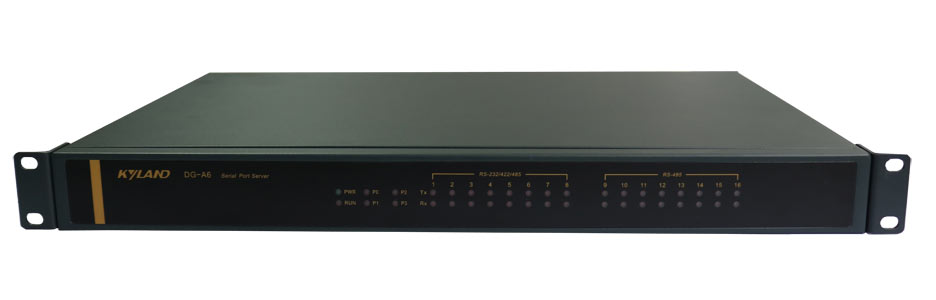

DG-A6
8 and 16-port RS232/422/485 terminal servers with multiple LAN access
Product Overview

DG-A6 series terminal server is an industrial designed 1U 19" rack-mount device. It provides full network access ability with its independent 2 giga Ethernet ports and 4 10/100M Ethernet ports. Each Ethernet port can be mapped freely to access indicated serial port. Furthermore, multiple network clients can transparently concurrent access specified serial port for redundancy.

It is important to support back-up power supply in industrial environment. DG-A6 series terminal server can also support dual AC power inputs by internally using independent power modules for extra reliability.

Key Features

High performance of 800MHz processor
512M DDR3 RAM, 1G Flash
2 x 10/100/1000M Ethernet ports
4 x 10/100M Ethernet ports
Built-in RTC and buzzer
Built-in temperature sensor
1U, 19” inch, fan-less design
Support redundant LAN access to COM
Support dual AC power inputs
Support extreme operating temperature of -40°C to 80°C

Specifications
Software Specifications
Operation System Embedded Linux Kernel 3.12
Network Protocols TCP, UDP, IPv4, ICMP, ARP, HTTP, DHCP, NTP, NFS, Telnet, FTP, TFTP, PPP, PPPoE
Security Protocols SSH, PAP, CHAP
Watchdog Programmable by Linux API
WEB Configuration YES
Hardware Specifications
Performance CPU : Cortex-A8 800MHz processor
RAM : 512MB DDR3 SDRAM
Flash : 1GB Flash
Ethernet Interface LAN: 2 x 10/100/1000M 8-pin RJ45, 4 x 10/100M 8-pin RJ45
Magnetic Isolation: 1.5KV built-in
Serial Interface & Signal Number of Ports: 8 or 16
RS-485-2w: D+, D-, GND
RS-485-4w(RS-422): Tx+, Tx-, Rx+, Rx-, GND
RS-232: TxD, RxD, GND
Serial Line Protection: 15KV ESD for all signal
LED System: PWR, RUN
Serial: TXD, RXD
LAN: ACT, LINK(RJ45)
RTC RTC: RTC with backup-battery
Physical Characteristics Housing: SECC(1mm)
Weight: 6kg
Dimension: 440×300×45mm
Installation: 19" rack mounting
Environmental Limits Operating temperature: -40°C ~ 80°C
Operating humidity: 5 ~ 95% RH
Storage temperature: -40°C ~ 85°C
Vibration resistance: 1G@IEC-68-2-6,sine wave, 5~500 Hz,1 Oct./min,1 hr/axis
Shock resistance: 5G@IEC-68-2-27,half-sine wave,30 ms
Power Requirements Input voltage: 85~264VAC/77~300VDC or 9~36VDC
Power Consumption: < 6 W
Reliability Alert: Built-in buzzer
Temperature: Built-in temperature sensor
Watchdog: WDT monitoring
MTBF > 50000 hours
Warranty Warranty: 5 years
Approvals CE
IEC 60950-1, EN 60950-1
Industrial Standard EMI:
EN 55022 Class A
EMS:
EN 55024
EN 61000-4-2(ESD) Level3
EN 61000-4-4(EFT) Level4
EN 61000-4-5(Surge) Level3
Mechanical Drawing
Ordering Information

DGW-A6T-6T8D-L5:  A8 800Mhz, 512M DDR3, 1G Flash, 6 x Eth, 8 x RS232/RS485/RS422, 9~36 VDC PS, 1U 19" rack mount
DGW-A6T-6T8D-L5-L5:  A8 800Mhz, 512M DDR3, 1G Flash, 6 x Eth, 8 x RS232/RS485/RS422, 9~36 VDC dual PS, 1U 19" rack mount
DGW-A6T-6T16D-L5:  A8 800Mhz, 512M DDR3, 1G Flash, 6 x Eth, 8 x RS232/RS485/RS422+8 x 2w-RS485, 9~36 VDC PS, 1U 19" rack mount
DGW-A6T-6T16D-L5-L5:  A8 800Mhz, 512M DDR3, 1G Flash, 6 x Eth, 8 x RS232/RS485/RS422+8 x 2w-RS485, 9~36 VDC dual PS, 1U 19" rack mount
DGW-A6T-6T8D-HV:  A8 800Mhz, 512M DDR3, 1G Flash, 6 x Eth, 8 x RS232/RS485/RS422, 85 ~ 264 VAC/77 ~ 300 VDC PS, 1U 19" rack mount
DGW-A6T-6T8D-HV-HV:  A8 800Mhz, 512M DDR3, 1G Flash, 6 x Eth, 8 x RS232/RS485/RS422, 85~ 264 VAC/77 ~ 300 VDC dual PS, 1U 19" rack mount
DGW-A6T-6T16D-HV:  A8 800Mhz, 512M DDR3, 1G Flash, 6 x Eth, 8 x RS232/RS485/RS422+8 x 2w-RS485, 85 ~ 264 VAC/77 ~ 300 VDC PS, 1U 19" rack mount
DGW-A6T-6T16D-HV-HV:  A8 800Mhz, 512M DDR3, 1G Flash, 6 x Eth, 8 x RS232/RS485/RS422+8 x 2w-RS485, 85 ~ 264 VAC/77 ~ 300 VDC dual PS, 1U 19" rack mount

Package list
1 DG-A6 series terminal server
19" rack mounting suit
Ethernet cable: RJ45 to RJ45 cable,100cm
AC power cord (if AC model is selected)
Document and software CD
Warranty card
