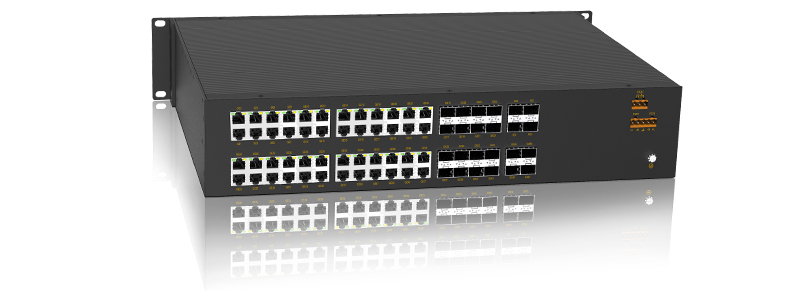

SICOM3448G
48G+4X ports Layer 2 managed rack mountable switch
Product Overview

SICOM3448G is a full Gigabit layer 2 managed industrial Ethernet switch designed to operate reliably in climatically demanding utility and industrial environments. SICOM3448G is a 19-inch 2U rack mountable device, supports 4 10gigabit ports + 20 gigabit combo ports + 28 gigabit copper ports, or 4 10gigabit ports + 8 gigabit combo ports + 24 gigabit SFP ports + 16 gigabit copper ports. SICOM3448G supports many Layer 2 software features such as port, VLAN, multicast, QoS, fast redundant ring. It supports Console, Telnet, Web management and network management software based on SNMP. At present, the product is widely used at the oil & gas, distribution network automation and many other industrial communication systems.

Key Features

Supports max 4 10Gigabit ports, 48 Gigabit ports

Supports DT-Ring ,DRP, RSTP/MSTP for network redundancy.

EMC Level 3

IP30 protection

CE,FCC

Specifications
Technical specifications
Industry standard EMI
FCC CFR47 Part 15,EN55022/CISPR22,Class A
EMS
IEC61000-4-2(ESD) ±6kV(contact),±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz-2GHz)
IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±2kV
IEC61000-4-6(CS) 10V(150kHz-80MHz)
IEC61000-4-8(power frequency magnetic field) 30A/m(cont.)
Machinery
IEC60068-2-6 (vibration)
IEC60068-2-27 (shock)
IEC60068-2-32 (free fall)
Approvals CE,FCC
Quality assurance MTBF 547500h
Warranty 5 years
Environmental limits Operating temperature -20C to +60C
Storage temperature -40C to +85C
Ambient Relative Humidity 5% to 95% (non-condensing)
Physical Characteristics Housing Metal
Cooling Natural cooling, fanless
Protection Class IP30
Dimensions
(W×H×D) 482.6mm×88mm×325mm
Weight < 11 Kg
Mounting 19 inch 2U rack mounting
Power Requirements Power input 100-240VAC,50/60Hz;110-220VDC (85-264VAC/77-300VDC)
Power terminal 5-pin 5.08 mm-spacing plug-in terminal block
Power consumption <72W
Overload protection Support
Reverse connection protection Support
Redundancy protection Support
LED LED on front panel
Alarm LED: Alarm
Running LED: Run
Power LED: PWR1, PWR2
Port LED: Link/ACT
Port speed LED: Speed

LED on rear panel
Port LED: Link/ACT
Port speed LED: Speed
Interface 10 Gigabit ports 10GBase-X, SFP+ port
Gigabit ports 1000Base-X, 100Base-FX, SFP port
10/100/1000Base-T(X), RJ45 port
Console port RS232,RJ45
Alarm contact 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC/220 VDC Max, 2 A Max, 10A@1s, 60 W Max
Switch properties Priority queue 8
Number of VLANs 4K
VLAN ID 1~4093
Number of multicast groups 8K
MAC table 8K
Packet buffer 32Mbit
Packet forwarding rate 130.9Mpps
Switching delay <5μs
Standard IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-T)
IEEE 802.3ab (1000Base-T)
IEEE 802.3ad (port aggregation)
IEEE 802.3z (1000Base-SX/LX)
IEEE 802.3x (flow control)
IEEE 802.1p (priority)
IEEE 802.1Q (VLAN)
IEEE 802.1d(STP)
IEEE 802.1w (RSTP)
IEEE 802.1s (MSTP)
Software functions
IP address management Supports DHCP server/snooping/client
Management and maintenance Supports Console, Telnet, and Web management methods.
Supports SNMPv1/v2c/v3 and can managed by Kyvision.
Supports file transfer and software update over SFTP,TFTP,HTTP,HTTPS.
Supports the IP/MAC address conflict alarm, power failure alarm, power alarm, port linkdown alarm, ring alarm
Supports port mirroring.
Supports Syslog.
Supports RMON
Supports LLDP.
Supports SNTP.
Service quality management Supports ACL.
Support 802.1p(CoS),DSCP
Supports SP and WRR queuing.
Security Supports HTTPS/SSL.
Supports SSH.
Supports user grading.
Multicast protocol Supports IGMP snooping.
Supports static multicast.
Redundancy protocol Supports DT-Ring, DT-Ring+, and DT-VLAN and the recovery time<50 ms.
Supports DRP and the recovery time<20 ms.
Supports RSTP/MSTP and compatible with STP.
Switching function Supports VLAN,PVLAN
Supports GVRP
Supports port aggregation.
Supports flow control.
Supports Rate limit
Supports broadcast storm suppression.

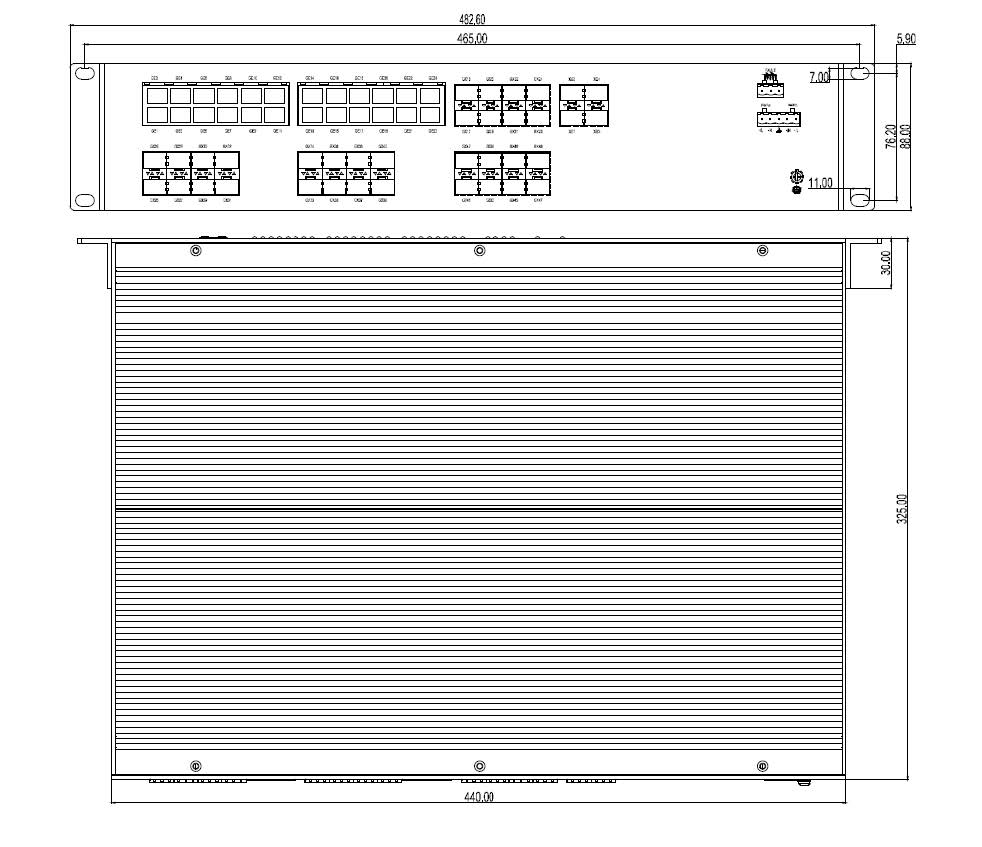

Mechanical Drawing

Ordering Information

Product Model

SICOM3448G- Ports-PS1-PS2

SICOM3448G-C- Ports-PS1-PS2

Code definition

Code selection

Ports:

4X20G28GE=4×10GBase-X SFP+ ports; 20×1000Base-X,10/100/1000Base-T(X) Combo ports; 28×10/100/1000Base-T(X) RJ45 ports

4X8G24GX16GE=4×10GBase-X SFP+ ports; 8×1000Base-X,10/100/1000Base-T(X) Combo ports;24×1000Base-X SFP ports; 16×10/100/1000Base-T(X) RJ45 ports

4X8G16GE=4×10GBase-X SFP+ ports; 8×1000Base-X,10/100/1000Base-T(X) Combo ports; 16×10/100/1000Base-T(X) RJ45 ports

PS: power input

HV-HV=100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC),redundant power supply
