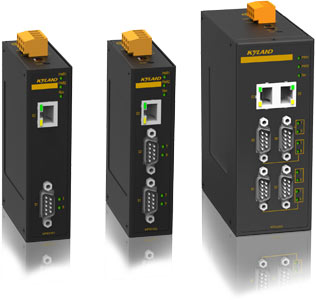

The KGW3101, KGW3102, and KGW3204 gateways convert between Modbus TCP and Modbus RTU/ASCII protocols. Each Ethernet port can be accessed by up to 16 TCP master/client devices, or 16 TCP slave/server devices. Each serial port can manage up to 128 serial master/slave nodes.
The KGW3101, KGW3102, and KGW3204 Modbus gateways support both Transparent mode and Agent mode. In Transparent mode, the gateway will bypass and translate Modbus commands between Modbus TCP/RTU/ASCII. In Agent mode, the gateway will actively poll the Modbus slave devices and store data in the Modbus’s memory. The Modbus master can retrieve Modbus slave devices’ data via the gateway’s memory. KGW3101/3102/3204 can be widely applied in all kinds of applications in factory automation and industrial segments.
Convert between Modbus TCP and Modbus RTU/ASCII
1 or 2 Ethernet port and 1, 2, or 4 RS-232/422/485 ports
Supports both Transparent & Agent mode transmission
16 TCP devices per Ethernet port, Client or Server
128 devices per serial port, Master or Slave
Build-in 2KV serial Isolation protection
Metal housing with wide temperature rating (-40 to +75℃)
UL61010, Class I Div 2, CE, FCC, RoHS
| Technical Specification | |
| Ethernet Interface | Protocols: Modbus TCP Number of ports: KGW3101/KGW3102: 1 KGW3204: 2 Speed: 10/100 Mbps, Auto MDI/MDIX Connector: RJ45 Magnetic Isolation Protection: 1.5 kV (built-in) |
| Serial Interface | Protocols: Modbus RTU/ASCII Number of ports: KGW3101: 1 KGW3102: 2 KGW3204: 4 Serial Standards: RS-232/422/485, software selectable Connector: DB9 male ESD Protection: 15 kV for all signals Isolation Protection: 2 kV (build-in) DIP-Switch: Enable/Disable 120Ω matching resistor for RS485 |
| Serial Communication Parameters | Data Bits: 7 or 8 Stop Bits: 1 or 2 Parity: None, Even, Odd, Space, Mark Flow Control: XON/XOFF, RTS/CTS, None Baudrate: 300bps to 460.8kbps |
| Security | Security Protocols：HTTPS, SSH2 |
| LED | System: PWR1, PWR2, Run Serial port: S1-T/R、S2-T/R、S3-T/R、S4-T/R LAN: SPEED, ACT/LINK (RJ 45) |
| Button | Reset: Supports "reset to factory default settings" |
| Power Requirements | Input voltage：12 to 48 VDC, recommended 24 VDC Power plug: 4-pin terminal block Power Consumption: KGW3101/3102: 1.8W KGW3204: 3.2W Overload protection: Support Reverse protection: Support Redundancy protection: Support |
| Physical Characteristics | Housing: Aluminum Weight: KGW3101: 165g KGW3102: 170g KGW3204: 320g Dimension: KGW3101/KGW3102: 30×115×68 mm（W×H×D） KGW3204: 54×134×106 mm（W×H×D） Protection level: IP40 Installation: DIN-rail mounting |
| Environmental Limits | Operating temperature: -40 to 75℃ Storage temperature: -40 to 85℃ Operating humidity: 5 to 95% RH |
| Quality Assurance | Warranty: 5 years |
| Approvals | UL61010, Class I Div 2, CE, FCC, RoHS IEC 60950-1, EN 60950-1 |
| Industrial Standard | EMI: EN 55032 FCC Part 15 Subpart B Class A EMS: EN 55024 IEC61000-4-2(ESD): ±6kV(contact),±8kV(air) IEC 61000-4-3(RS): 10V/m (80MHz–2GHz,) IEC61000-4-4(EFT): Power Port:±2kV;Data Port:±1kV IEC61000-4-5(Surge): PowerPort: ±1kV/DM, ±2kV/CM; Data Port:±1kV IEC 61000-4-6(CS): 10V(150KHz-80MHz) Machinery: IEC60068-2-6(Vibration) IEC60068-2-27(Shock) IEC60068-2-32(Free Fall) |
Available Models
KGW3101-1T1D-L17-L17: 1-port standard Modbus gateway
KGW3102-1T2D-L17-L17: 2-port standard Modbus gateway
KGW3204-2T4D-L17-L17: 4-port standard Modbus gateway
