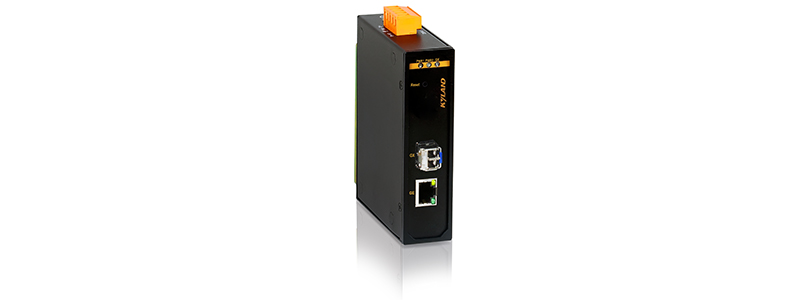

The KOM600G is a ultra low power consumption Green industrial Gigabit media convertor, its full load power consumption is as low as 4.5 watts. The KOM600G supports 1 1000Base-X SFP port and 1 10/100/1000Base-T(X) copper port. The KOM600G provides 9-36VDC or 18-72VDC redundant power inputs, supports DIN-Rail mounting or Panel mounting, supports IP40 protection class,and supports LFP (Link Fault Pass-Through).
Green Ethernet solution with ultra low power consumption design, its full load power consumption is as low as 4.5 watts
1 1000Base-X SFP port and 1 10/100/1000Base-T(X) RJ45 port
Supports LFP (Link Fault Pass-Through)
Redundant power inputs with wide voltage range
Store and Forward switching
IP40 protection class
CE, FCC certificates
| Product Specifications | |
| Standard | IEEE 802.3i(10Base-T) IEEE 802.3u(100Base-TX and 100Base-FX) IEEE 802.3ab(1000Base-T) IEEE 802.3z(1000Base-SX/LX) |
| Interface | Fast Ethernet Ports: 1000Base-X, SFP port 10/100/1000Base-T(X), RJ45 port |
| LED | Indicators in the front panel: Power LED: PWR1, PWR2 Interface LED: Link/ACT, Speed (RJ45 Ports); Link/ACT(Fiber Ports) |
| Power Requirements | Power Input: 24-48VDC(18-72VDC) 12-24VDC(9-36VDC) Power Terminal: 5-pin 5.08mm-spacing plug-in terminal block Power Consumption:<4.5w Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support |

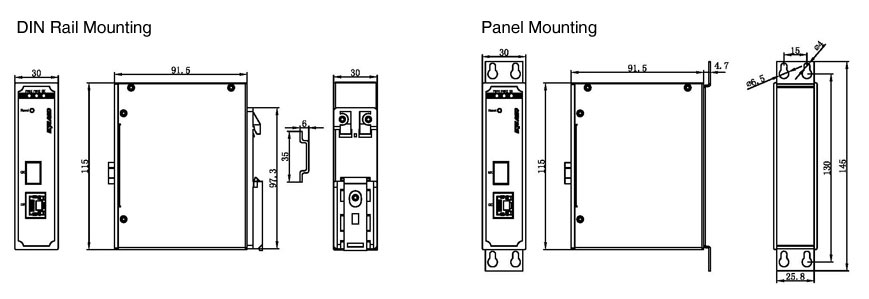

| Physical Characteristics | Housing: Metal Heat Dissipation Mode: Natural cooling, without fans Protection Class: IP40 Dimensions: 30mm×115mm×91.5mm (W×H×D) Weight: 0.46kg Mounting: DIN-Rail or Panel mounting |
| Environmental Limits | Operating Temperature: -40°C to +85°C Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5-95% (non-condensing) |
| Quality Assurance | MTBF: 546,000 hrs Warranty: 5 years |
| Approvals | CE(EMC), FCC: Models with L2:24-48VDC. |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD) ±6kV(contact),±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz-2GHz) IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±1kV IEC61000-4-6(CS) 3V(10kHz-150kHz);10V(150kHz-80MHz) Mechanical standards: IEC60068-2-6 (Vibration), IEC60068-2-27 (Shock), IEC60068-2-32 (Free Fall) |
| KOM600G-Ports-PS1-PS2 | |
| Ports | |
| 1GX1GE | 1 × 1000Base-X SFP port, 1 × 10/100/1000Base-T(X) RJ45 port |
| PS | |
| L2-L2 | 24-48VDC(18-72VDC), redundant power inputs |
| L5-L5 | 12-24VDC( 9-36VDC), redundant power inputs |
| Accessories | |
| Gigabit SFP Module | Please refer to Gigabit SFP module ordering table |
| DT-BGAZ-01 | Panel for panel mounting |
| DT-FCZ-RJ45-01 | Dustproof cover for RJ45 port |
