Opal10GL
10G port full gigabit unmanaged DIN-Rail switches
Product Overview

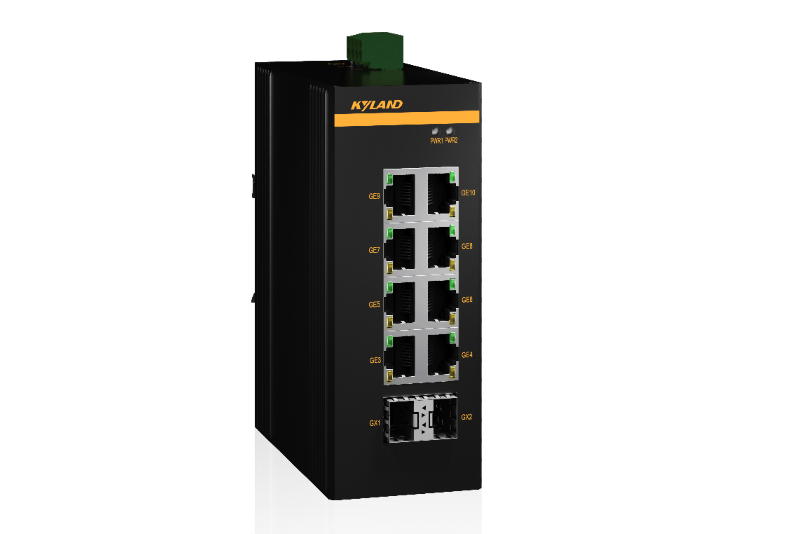

Opal10GL unmanaged 10-port switch is characterized by its full Gigabit interface, compact size, economical and plug-and-play design, generally used to connect the high bandwidth Ethernet in factory automation, petrochemical, ITS, and other applications. Opal10GL supports 2 Gigabit SFP ports and up to 8 10/100/1000Base-TX RJ45 ports, redundant power inputs, built-in isolated power supply, metal housing with IP40 protection class, thus ensuring fast and reliable data transmission in harsh industrial environments. Opal10GL provides both standard (-10°C to 60°C) and wide (-40°C to 75°C) operating temperature range models to meet different applications.

Key Features

Support 2 Gigabit SFP ports, 8 10/100/1000Base-T(X) ports
Built-in isolated power supply, Full load power consumption is as low as 6.9 W
Both standard and wide operating temperature models are available
Jumbo frame transmission function (up to 9KB)
EMC level 3
IP40 protection class

Specifications
Technical Specification
Standard IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3z (1000Base-X)
IEEE 802.3x (Flow Control)
Switch Properties MAC Table: 4K
Packet Buffer: 1.5Mbit
Packet Forwarding Rate: 14.9Mpps
Switching Delay:<5μs
Jumbo Frame Size: 9KB
Interface Gigabit Port:
1000Base-X, SFP slot
10/100/1000Base-T(X), RJ45 port
LED LEDs on Front Panel
Power LED: PWR1, PWR2
Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT (Fiber port)
Power Requirements Power Input: 12-48VDC/18-30VAC
Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block
Power Consumption: 6.9W(2GX8GE), 5.8W(2SFP8GE), 4.8W(8GE)
Overload Protection: Support
Reverse Protection: Support
Redundancy Protection: Support
Physical Characteristics Housing: Metal
Cooling: Natural convection, fanless
Protection Class: IP40
Dimension: 53.6mm×135mm×108mm (W×H×D)
Weight: 0.5Kg
Mounting: DIN-Rail or Panel Mounting
Environmental Limits Operating Temperature:
-10°C to +60°C (-E)
-40°C to +75°C
Storage Temperature: -40°C to +85°C
Ambient Relative Humidity: 5–95% (non-condensing)
Quality Assurance MTBF: 6363643 hrs
Warranty: 5 years
Approvals CE, FCC
UL61010, Class I Div 2
Industry Standard EMI:
FCC CFR47 Part 15,EN55032/CISPR22,Class A
EMS:
IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air)
IEC61000-4-3(RS): 10V/m (80MHz–2GHz)
IEC61000-4-4(EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±2kV
IEC61000-4-6(CS): 10V (150kHz–80MHz)
Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)

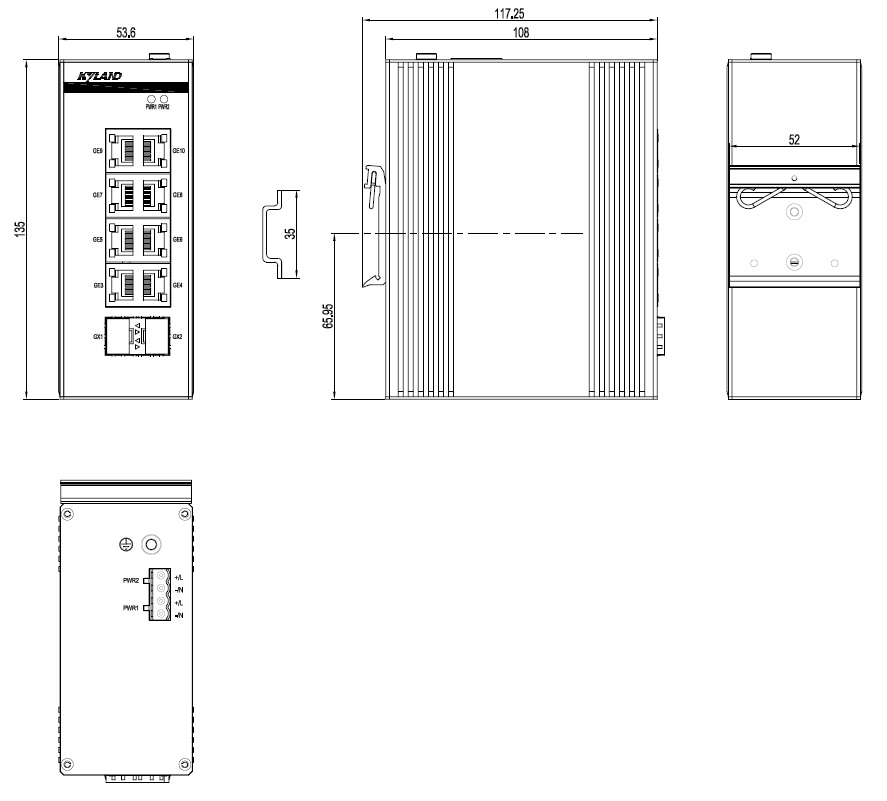

Mechanical Drawing

Ordering Information

Opal10GL-X-Ports-PS1-PS2

X

Operating temperature range

-10 to +60°C operating temperature

None

-40 to+75°C operating temperature

Ports



2GX8GE

2 X 1000Base-X SFP slots, 8 X 10/100/1000Base-T(X) RJ45 ports

2SFP8GE 2 X 100Base-X SFP slots, 8 X 10/100/1000Base-T(X) RJ45 ports

8GE

8 X 10/100/1000Base-T(X) RJ45 ports

PS1-PS2



LV-LV

12-48VDC/18-30VAC, redundant power inputs





Accessories



Gigabit SFP module

Please refer to the Gigabit SFP module ordering list

100Base-X SFP module Please refer to the 100Base-X SFP module ordering list

DT-BGAZ-02

Panel for Panel mounting

DT-FCZ-RJ45-01

Dustproof cover for RJ45 port
