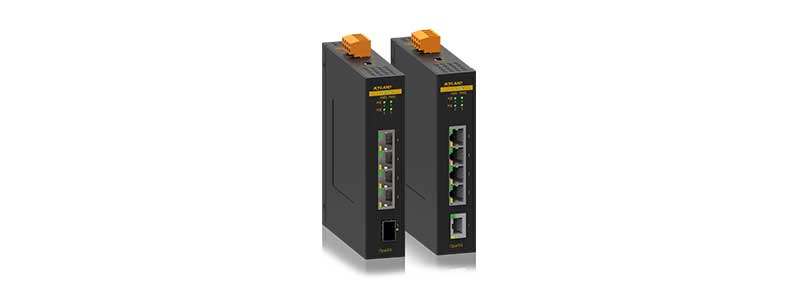

5 port unmanaged DIN-Rail PoE switches
Product Overview

Opal5S series are unmanaged 5-port PoE switches, providing 1 100M SFP/Copper port and 4 10/100Base-TX PoE ports compliant with IEEE802.3at/af. While transmitting data over the cable, each PoE port can output 30 watts to PoE terminals directly, eliminating the need for additional wiring. Opal5S supports wide operating temperature range from  -40℃ to 75℃, metal housing with IP30 protection class and redundant power inputs, becoming an economical and harsh-environment-resistant solution for the ITS, video surveillance and other automation applications.


Key Features
1 100MSFP/Copper port and 4 10/100Base-TX PoE ports compliant with IEEE802.3at/af
Support PD detection and PD classification
Operating temperature is -40℃ to 75℃
IP30 protection class
CE, FCC, UL61010
Technical Specification
Technical Parameter Standard IEEE 802.3i,IEEE 802.3u,IEEE 802.3af, IEEE 802.3at
Switch Properties MAC Table 8K
Packet Buffer 1Mbit
Packet Forwarding Rate 0.744Mpps
Switching Delay <10μs
Jumbo Frame 10KByte
Interface Port 100Base-FX SFP port
10/100Base-T(X), RJ45 port
802.3af/at PoE Port Each PoE port provides max 30W feed power
V+ for pin 1, 2 and V- for pin 3,6(End-Span PSE)
Ethernet port support half duplex and full duplex
DIP Switches DIP Switches I:
ON: Enable broadcast storm protection
OFF: Disable broadcast storm protection
DIP Switches II:
ON: Enable Jumbo Frame transpond
OFF: Disable Jumbo Frame transpond
LED LEDs on Front Panel Power LED:PWR1,PWR2
Interface LED:Link/ACT,Speed(Copper port);
Link/ACT(SFP port)
PoE Status LED: POE(2-5)
Power Requirement Power Input
L5: 24VDC(12-36VDC)
L16: 48VDC(12-57VDC)
12-45VDC for no PoE
45-57VDC for PoE
51-57VDC for PoE+

Power Consumption
<3.5W(Non PD)
PoE output 60W@12VDC
PoE output 120W@24VDC
<3.5W@12-45VDC(Non PD)
PoE output 60W@45-57VDC(PoE)
PoE output 120W@51-57VDC(PoE+)

Power Terminal 4-pin 5.08mm-spacing plug-in terminal block
PoE overload protection Support
Reverse protection Support
Redundancy protection Support
Physical Characteristics Housing Metal
Cooling Natural convection, fanless
Protection Class IP30
Dimension 30mm×136mm×106mm(W×H×D)
Weight <0.5Kg
Mounting DIN-Rail Mounting
Environmental Limit Operating Temperature -40℃~+75℃
Storage Temperature -40℃~+85℃
Ambient Relative Humidity 5~95% (non-condensing)
Warranty MTBF 2638080h
Warranty 5 years
Approvals CE, FCC
EMC: EN 55032, EN 61000-6-4, EN 61000-6-2
Rail Traffic: EN 50121
Industrial Standard EMI
FCC CFR47 Part 15,EN55032/CISPR22,Class A
IEC61000-4-2(ESD) ±6kV(contact),±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±2kV
IEC61000-4-6(CS) 10V(150kHz~80MHz)
IEC60068-2-6 (Shock)
IEC60068-2-27 (Vibration)
IEC60068-2-32 (Free Fall)

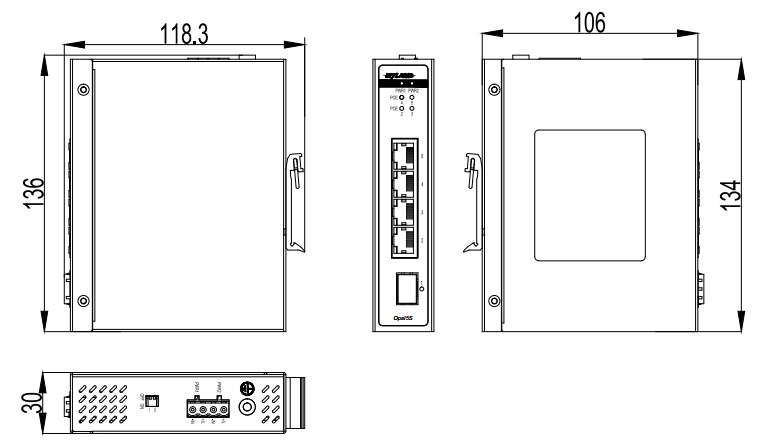

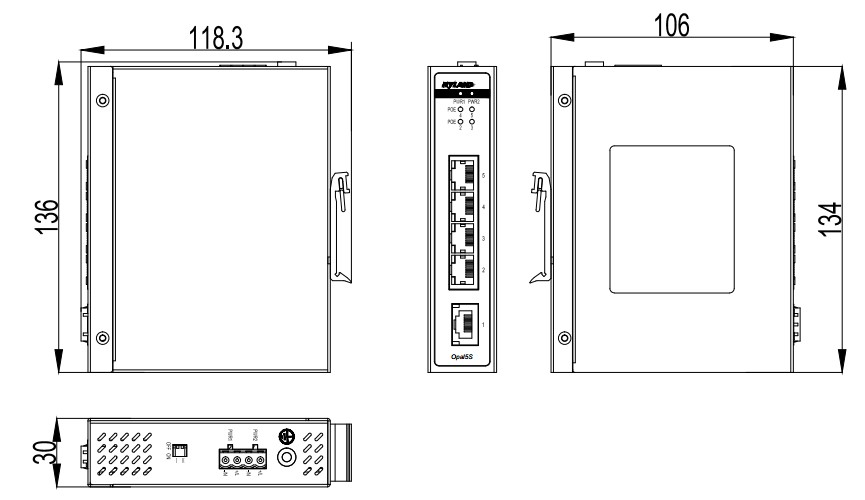

Mechanical Drawing






Ordering Information

Ordering Information

Product Models


Code Definition

Ordering Code


1SFP4P=1×100Base-FX, SFP port; 4x10/100Base-T(X) PoE ports

1T4P=1x10/100Base-T(X) port; 4x10/100Base-T(X) PoE ports


(Redundant Power Inputs)

L5-L5=12-36VDC, redundant power inputs

L16-L16=12-57VDC, redundant power inputs
