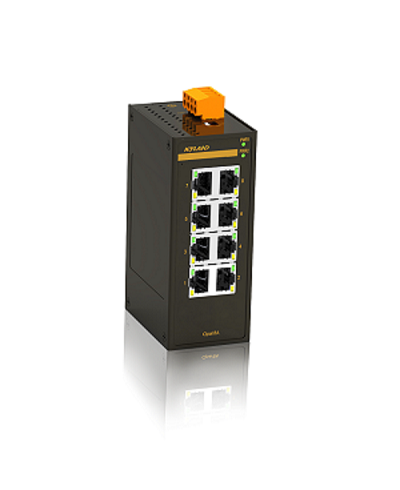

Opal8A unmanaged 8-port switch is specially designed for automation control applications. It is equipped with 8 10/100Base-TX RJ45 ports. Opal8A supports redundant power inputs, metal housing with IP30 protection class, provides both standard (-10 to 60℃) operating temperature range model and wide (-40 to 75℃) operating temperature range models, Support QoS function, meet the requirements of different industrial applications, allocate network bandwidth effectively, ensures a reasonable utilization of resources thus ensuring fast and reliable data transmission in harsh industrial environments.
8 10/100Base-T(X) ports
Both standard and wide operating temperature models are available
Support QoS function
IP30 protection class
CE, FCC, UL61010, Class I Div 2
| Technical Specification | |
| Technical Parameter | Standard IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-TX) |
| Switch Properties | MAC Table 16K Packet Buffer 4Mbit Packet Forwarding Rate 1.2Mpps Switching Delay <10μs |
| Interface | 10/100Base-T(X), RJ45 port |
| LED | LEDs on Front Panel Power LED: PWR1, PWR2 Interface LED: Link/ACT, Speed (RJ45 port) |
| DIP-Switch | Enable/Disable broadcast storm protection Enable/Disable QoS |
| Power Requirements | Power Input: 12-48VDC/18-30VAC Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block Power Consumption <3.0W Overload Protection Support Reverse Protection Support Redundancy Protection Support |

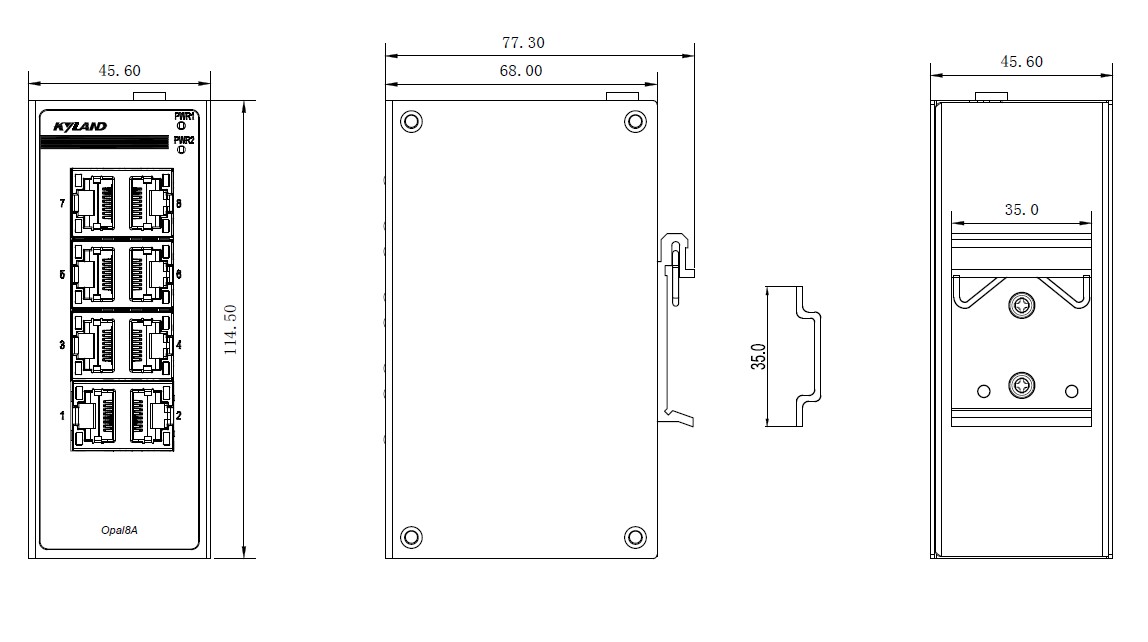

| Physical Characteristics | Housing Metal Cooling Natural convection, fanless Protection Class IP30 Dimension 46mm×115mm×68mm(W×H×D) Weight 0.25Kg Mounting DIN-Rail or Panel Mounting |
| Environmental Limits | Operating Temperature: -10°C to +60°C (Opal8A-E) -40°C to +75°C Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5-95% (non-condensing) |
| Quality Assurance | MTBF 4388295h Warranty 5 years |
| Approvals | CE, FCC EMC: EN 55032, EN 55035, EN 61000-6-4, EN 61000-6-2 UL61010, Class I Div 2 |
| Industry Standard | EMI FCC CFR47 Part 15,EN55032/CISPR22,Class A EMS IEC61000-4-2(ESD) ±6kV(contact),±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz～2GHz) IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV IEC61000-4-5(Surge)PowerPort:±1kV/DM,±2kV/CM;Data Port:±2kV IEC61000-4-6(CS) 10V(150kHz～80MHz) Machinery IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
|
Opal8A-X-Ports-PS |
|
|
X |
Operating temperature range |
|
E |
-10 to +60°C operating temperature |
|
None |
-40 to +75°C operating temperature |
|
Ports |
|
|
8T |
8 10/100Base-T(X) RJ45 ports |
|
PS |
|
|
LV-LV |
12-48VDC/18-30VAC, redundant power inputs |
|
|
|
|
Accessories |
|
|
DT-BGAZ-01 |
Panel for Panel mounting |
|
DT-FCZ-RJ45-01 |
Dustproof cover for RJ45 port |
Kyland-Opal8A-Datasheet-EN.pdf
