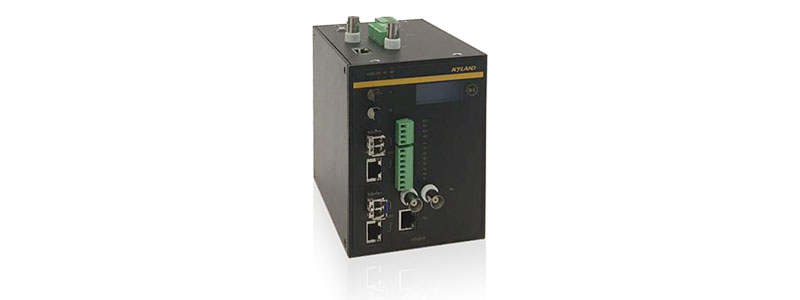

PTS-DR200 is a multifunction time server. PTS-DR200 is designed for DIN Rail Mount requirements. It is a compact and provides nanosecond accuracy time service for any industry fields. It supports GPS (Global Positioning Service), BDS (Chinese Satellite System), and GLONASS (Russian Satellite System) as sky time sources and PTP (Precision Timing Protocol), IRIG-B as ground time sources. Based on the multiple time source input PTS-DR200 has multi-time source selection logical and Sky-Grounding time backup function inside. It also supports PTP (Precision Timing Protocol), NTP (Network Time Protocol), IRIG-B, 1PPS, 1PPM, 1PPH and TOD etc. time synchronization signal output as time synchronization purpose. PTS-DR200 supports TMS (Time Management System) features to report PTS-DR200 time status by IEC61850, IEC60870-5-104, SNMP, Modbus TCP, DNP over TCP etc. It also can generate accurate GOOSE signal to trigger an event to monitor IED time status in power system and provides GOOSE subscriber to send time status by IEC61850 MMS.
Compact DIN Rail installation design
High Precision Reference Clock as Absolute Time Source (GPS, BDS, GLONASS)
Relative Reference Time and External Time Synchronization (PTP, IRIG-B)
High precision stable OCXO oscillator with excellent time keeping performance
Support PTP,NTP,IRIG-B,PPS,TOD output
Report time status by SNMP, IEC61850 MMS, IEC60870-5-104, and DNP over TCP etc.
Support Web, SNMP etc. management system
| Functions | |
| Time Reference | Support GPS, BDS, GLONASS Support PTP input Support IRIG-B optical input and IRIG-B TTL input |
| Time Synchronization | Support PTPv2 Support PTP Grandmaster Support PTP Slave Support PTP BC Support IRIG-B demodulated output (B000~B007 Format; TTL, RS485 and Optical output) Support IRIG-B modulated output (B120~B127 Format) Support TOD serial time coding (RS232 and RS485 Interface,RS232 customizable; TOD, NMEA-RMC, NMEA-ZDA and Customized Serial Message) Support NTP/SNTP service |
| Time Signal Conversion | IRIG-B to PTP ,NTP and TOD PTP to NTP,IRIG-B and TOD |
| Time Management | GOOSE publisher by PPS, PPM as time trigger GOOSE subscriber to do time measurement Report time status by IEC61850 MMS, IEC60870-5-104, DNP over TCP etc. |
| Device Management | Support SNMP v1/v2c/v3, (no trap) Support WEB configuration and maintenance |
| Product Specifications | |
| Satellite Receiver | Channel： 72 channels satellite receiver GPS L1 C/A, GLONASS L1, BeiDou(BDS) B1 Sensitivity： Tracking Sensitivity:-167dBm Acquisition Sensitivity:-160dBm |
| Input Interface | Satellite：5V DC, BNC connector TTL：BNC connector, IRIG-B, one port Fiber：Multi-mode, 850nm, ST connector, IRIG-B, one optional port |
| Network Interface | Ethernet： Two 100/1000M Ethernet ports RJ45 or 100M SFP or 1000M SFP ports PTP v2： Grandmaster, Slave and Boundary clock E2E, P2P 802.3, IPv4 NTP/SNTP: NTP/SNTP server mode |
| Output Interface | TTL(BNC)：BNC connector, IRIG-B or PPS software configurable, two ports TTL(Terminal)：Terminal connector, IRIG-B or PPS software configurable, four ports Fiber：Multi-mode, 850nm, ST connector, IRIG-B or PPS software configurable, one optional port TOD：RS232/RS485(RS232 customizable), RJ45, 1PPS+TOD, one port IRIG-B Modulated：IRIG-B modulated signal, peak to peak 3~12V and modulated ratio 3:1~6:1 software configuration, two ports Contact：Terminal connector, Maximum 300VDC, 10mA, PPS or PPM software configurable, two ports |
| Alarm Interface | Relay： NC and NO relay alarm contact, 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC Max, 3 A Max |
| Maintenance Interface | Console：RS232, RJ45, one port |
| Display | LED： System alarm: ALARM Antenna status: ANT Antenna fix: FIX Time lock status: LOCK LCD：Display Date and Time |
| Power Supply | Input： 110-220VAC/DC(85-264VAC/85-300VDC) ,47-63Hz 24VDC(18-36VDC) 48VDC(36-60VDC) Terminal：3-pin 7.62 mm-spacing plug-in terminal block Consumption：<20W |
| Physical Characteristics | Housing：Metal Cooling：Natural cooling, fanless Dimensions(WxHxD)：102×140×149mm (4.02×5.51×5.87 in.) Weight：<2Kg(4.41pound) |
| Environmental Limits | Operating temperature：-20℃～+70℃ (-4°F to 158°F) Storage temperature：-30℃～+80℃ (-22°F to 176°F) Ambient Relative Humidity：5% to 95% (non-condensing) |
| Quality Assurance | Warranty：5 years |
| Approvals | CE, FCC EMC: EN 55032, EN 55035, EN 61000-6-4, EN 61000-6-2 IEC 62368-1, EN 62368-1 |
| Time Accuracy | |
| PPS | Fiber≤60ns TTL≤60ns RS485≤0.5µs Contact≤3µs |
| IRIG-B | Fiber≤60ns TTL≤60ns RS485≤0.5µs Modulated≤3µs |
| TOD | RS232≤5ms(RS232 customizable) RS485≤5ms |
| 1PPS+TOD | ≤60ns |
| NTP | ≤50µs |
| PTP | ≤50ns |
| Power | |
| 3 | 48VDC Single |
| 5 | 24VDC Single |
| 7 | 110-220VAC/DC Single |
| OSCILLATOR | |
| 1 | TCXO(<55µs/1h) |
| 3 | OCXO(<6µs/24h) |
| SATELLITE | |
| 1 | GPS/BDS/GLONASS Configurable |
| PTP | |
| 1 | PTPv2 (ETH0/ETH1) |
| FIO | |
| 0 | N/A |
| 1 | FI (ST 850nm MM) + FO (ST 850nm MM) |
SOFTWARE
| PTS-DR200-S1 | WEB + SNMP |
ANTENNA
| PTS-ANT-GPS-BDS-TNC | GPS/BDS, TNC Female Connector |
| PTS-ANT-GPS-BDS-N | GPS/BDS, N Female Connector |
| PTS-ANT-GPS-BDS-GLN_TNC | GPS/BDS/GLONASS, TNC Female Connector |
| PTS-ANT-GPS-BDS-GLN_N | GPS/BDS/GLONASS, N Female Connector |
| PTS-ANT-CABLE-15 | Coaxial Cable (15 meters) (N Male to BNC Male Connector) |
| PTS-ANT-CABLE-30 | Coaxial Cable (30 meters) (N Male to BNC Male Connector) |
| PTS-ANT-CABLE-50 | Coaxial Cable (50 meters) (N Male to BNC Male Connector) |
| PTS-ANT-CABLE-80 | Coaxial Cable (80 meters) (N Male to BNC Male Connector) |
| PTS-ANT-CABLE-100 | Coaxial Cable (100 meters) (N Male to BNC Male Connector) |
| PTS-ANT-AMPLIFIER | Antenna Amplifier (BNC Female to Male Connector) |
| PTS-ANT-LIGHTING | Lighting Arrester (BNC Female to Male Connector) |
| PTS-ANT-BNC-J/BNC-K-30cm | Lightning protection device feeder 30 centimeters |
| PTS-ANT-MOUNT-BASE | Base Mount accessory for antenna |
| PTS-ANT-MOUNT-HOOP | Hoop Mount accessory for antenna |
