SICOM2000-L2-2G2GE20T
Industrial Ethernet Core switching module
Product Overview

SICOM2000-L2-2G2GE20T is a two-layer network management embedded industrial Ethernet core switching module specially developed for embedded integrated applications. It supports up to 20×10/100Base Fast Ethernet interfaces and 4 Gigabit Ethernet interfaces, of which 2 are Gigabit combo interfaces. It supports a wide range of operating temperatures (-40℃~70℃+), with a size of 80mm×95mm×16mm (length×width×height), suitable for multi port communication and highly integrated applications.

Key Features
Specifications
Software Features
Switching Supports VLAN,PVLAN
Support GVRP
Support port aggregation
Support LACP
Support port flow control
Support port speed limit and broadcast storm suppression
Redundancy Supports DT-Ring, recovery time<50ms
Supports DRP, recovery time<20ms
Supports RSTP/MSTP
Multicast Supports IGMP-snooping
Supports GMRP
Supports static multicast
Security Supports IEEE 802.1X
Supports HTTPS/SSL
Supports SSH
Supports RADIUS
Support TACACS+
Supports account classification
QoS Supports ACL
Supports 802.1p and TOS/DiffServ, Supports SP, WRR queuing and scheduling
Management and Maintenance Supports Console,Telnet,WEB
Supports SNMPv1/v2c/v3
Supports FTP/TFTP
Supports Port mirroring
Supports Syslog
Supports LLDP
Time Management Supports SNTP client
Supports PTPv2 TC
Technical Specifications
Technical Parameters IEEE 802.3i(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-T)
IEEE 802.3x(flow control)
IEEE 802.1p(priority)
IEEE 802.1Q(VLAN)
IEEE 802.1s(MSTP)
IEEE 802.1w(RSTP)
IEEE 802.1X(Port security)
Switching Properties Priority Queues 8
Number of VLANs 4K
VLAN ID 1~4093
Number of multicast groups 64
Routing table 4K
MAC Table 16K
Buffer 4Mbit
Forwarding rate 17.9Mpps
Switching latency <10μs
Interface Port configuration
2×10/100/1000Base-TX
2×10/100/1000Base-TX Combo
20×10/100Base-TX
Console RS232
LED 28 channels LED control interface
GPIO 15 channels GPIO interface
LED indicators Runing LED: Run
Ring LED: Ring
Power LED: PWR
Port LED: Link/ACT
Power Input: 5VDC(The effective value of power ripple less should than 50mV, and the voltage fluctuation should less than 5%)
Power Consumption: less than 20W
Physical characteristics Installation method: Embedded
Dimensions: 95×80×15.9 mm(W×H×D)
Environment Operating temperature: -40℃~+70℃
Storage temperature: -40℃~+85℃
Ambient relative humidity: 5~95% non-condensing
Warranty Warranty Period: 5 years
Industrial standards EMI
FCC CFR47 Part 15,EN55022/CISPR22,Class A
EMS
IEC61000-4-2 (ESD) ±6kV (contact), ±8kV (air)
IEC61000-4-3 (RS) 20V/m (80MHz-2GHz)
IEC61000-4-4 (EFT) Power Port: ±2kV; Data Port: ±2kV
IEC61000-4-5 (Surge) Power Port: ±1kV/DM, ±2kV/CM
IEC61000-4-6 (CS)10V (150kHz-80MHz)
IEC61000-4-8(Power frequency magnetic field)50Hz 100A/m
IEC61000-4-9(Pulsed magnetic field )300A/m
IEC61000-4-29 (Voltage Short interruptions) 10ms 100%
IEC61373-2010(Shock and Vibration)

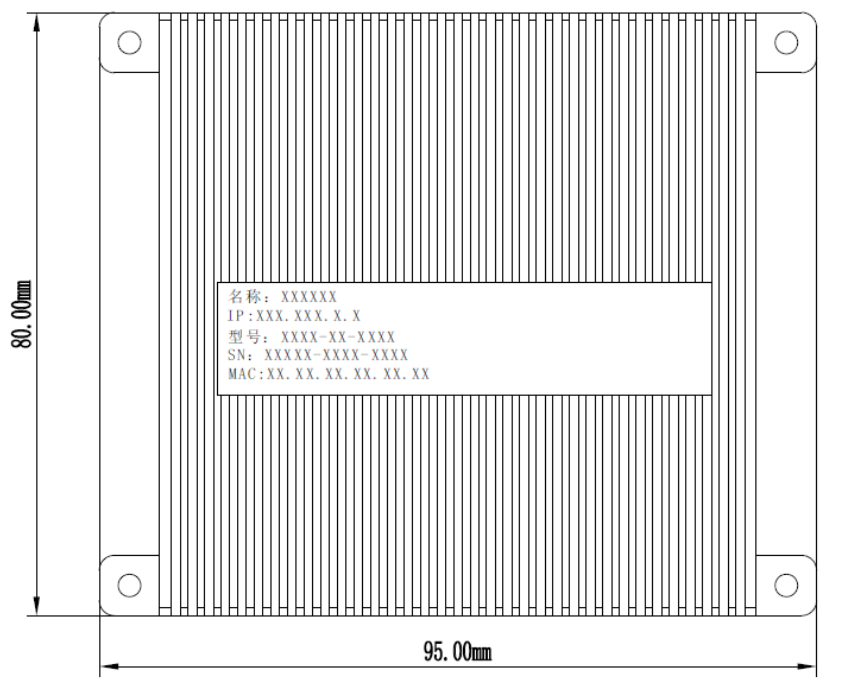

Mechanical Drawing



Ordering Information
Model SICOM2000-Layer-Coating-Ports
Code Definition Ordering Codes
Layer: L2: Layer 2 Management model
Coating: C: Three anti-paint coating; N/A: No anti-paint coating
Ports: 2G2GE20T=2×1000Base-X,10/100/1000Base-T(X) Combo ports; 2×10/100/1000Base-T(X) RJ45 ports; 20×10/100Base-T(X) RJ45 ports
