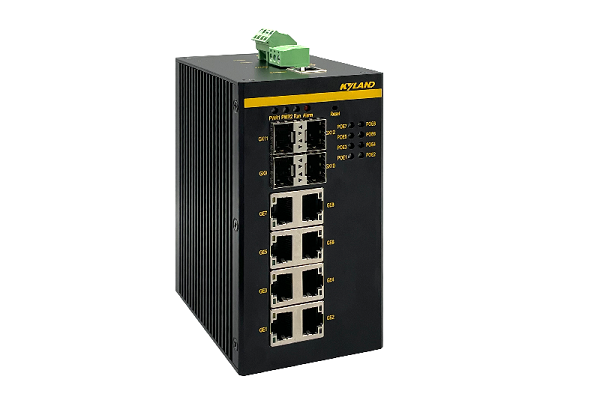

SICOM3000S is Layer 2 DIN-Rail Managed PoE Industrial Ethernet Switch. SICOM3000S support 4 100/1000 SFP ports for uplink and 8 1000M PoE ports. It supports IEEE802.3af and at for PoE function, and support 48VDC for power supply. The PoE output is up to Max 240W.
SICOM3000S supports DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP, VLAN, multicast, QoS, SSH and many other Layer 2 software features, and supports CLI, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c/v3. SICOM3000S is especially designed for harsh environments with wide operating temperature range, EMC level 3, IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, and can be widely used in vehicle-road collaboration (V2X), petrochemical industry TV, airport, station, port terminal video surveillance and many other industrial applications.
Supports 4 100Base-X, 1000Base-X SFP ports, 8 10/100/1000Base-T(X) RJ45 PoE ports.
Support IEEE802.3af&at PoE Standard, PoE output is up to Max 240W.
Supports Redundancy protocols: DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP.
Supports MRP(PENDING)
Supports Network Security: HTTPS/SSL, SSH, TACACS+, IEEE802.1X, Radius, User Classification.
Supports CLI, Telnet, WEB management methods, Kyvision centralized management based on SNMPv1/v2c/v3.
Supports DDM (SFP port).
Supports IP40 protection.
| Software functions | |
| Switching | Supports VLAN Supports GVRP Supports port aggregation, LACP Supports port flow control Supports Rate limit based on flow Supports Broadcast/Multicast/Unknown Unicast storm suppression |
| Redundancy | Supports DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms Supports DRP/DHP with the recovery time<20ms Supports STP/RSTP/MSTP Supports MRP(PENDING, will be released on July) |
| Multicast | Supports IGMP snooping Supports GMRP Supports static multicast Supports IGMPv1/v2/v3 |
| Network Security | Supports HTTPS/SSL Supports SSH Supports TACACS+ Supports IEEE802.1X Supports RADIUS Supports User Classification Supports port isolate Supports IP Source Guard |
| Service Quality | Supports QoS, 802.1p(CoS), DSCP Supports SP, WRR queue scheduling Supports ACL |
| Management and Maintenance | Supports Console, Telnet, WEB management methods Supports SNMPv1/v2c/v3, Kyvision centralized management Supports software upgrade by FTP/TFTP Supports Power alarm, IP/MAC conflict alarm, Memory/CPU usage alarm, Port alarm, Ring alarm, Port traffic alarm, CRC error and packet lose alarm, SFP port RX power alarm and TX power alarm, Temperature alarm Supports DDM (SFP port) Supports loop detection Supports RMON Supports port mirroring Supports Syslog Supports LLDP Supports Link-check |
| IP Management | Supports DHCP server/snooping/client Supports DHCP Relay(option 82) Supports ARP |
| Clock Management | Supports SNTP Client Supports NTP Client |
| Routing protocol | Supports static routing |
| PoE management | Support PoE port configuration and PD detection Support PoE port power supply priority configuration Support state query and alarm, remote management |
| Technical Specification | |
| Technical Parameter | Standard IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-T and 100Base-FX) IEEE 802.3ab (1000Base-T) IEEE 802.3z (1000Base-SX/LX) IEEE 802.3ad (Link aggregation) IEEE 802.3x (Flow Control) IEEE 802.1p (Class of Service) IEEE 802.1Q (VLAN) IEEE 802.1d (STP) IEEE 802.1w (RSTP) IEEE 802.1s (MSTP) IEEE 802.1x (Network Access Control) IEEE 802.1ab (LLDP) IEEE 802.3af PoE IEEE 802.3at PoE+ |
| Switch Properties | Priority Queues 8 Number of VLANs 4094 VLAN ID 1～4093 Number of Multicast Groups 511 MAC Table 8K Packet Buffer 4.1Mbit Packet Forwarding Rate 17.9Mpps Switching Delay <5μs Jumbo frame 10000 bytes |
| Interface | Gigabit Port 100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP slot 10/100/1000Base-T(X), RJ45 port, Auto MDI/MDI-X connection IEEE 802.3af/at PoE Port Each PoE port provides max 15/30W feed power V+ for pin 1, 2 and V- for pin 3,6(End-Span PSE) Console Port RJ45, RS232 Alarm Contact 3-pin 5.08mm-spacing plug-in terminal block, 250VAC/220VDC Max, 2A Max |
| LED | LEDs on Front Panel Running LED: Run Alarm LED: Alarm Power LED: PWR1,PWR2 Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT, Speed (Fiber port) PoE LED: POE1- POE8 |
| Button | Reset: Reboot and restore default configuration |
| Power Requirement | Power Input 48VDC(18-57VDC) 18-45VDC for no PoE 45-57VDC for PoE(802.3af) 51-57VDC for PoE+(802.3at) Power Terminal 4-pin 5.08 mm-spacing plug-in terminal block PoE output Max 240W Power Consumption <10W Overload Protection Support Reverse Protection Support Redundancy Protection Support |
| Physical Characteristics | Housing Metal Cooling Natural convection, fanless Protection Class IP40 Dimension 70mm×135mm×110mm (W×H×D) Weight 1.0Kg Mounting DIN-Rail or Panel Mounting |
| Environmental Limit | Operating Temperature -40℃～+75℃ Storage Temperature -40℃～+85℃ Ambient Relative Humidity 5～95% (non-condensing) |
| Warranty | Warranty 5 years |
| Approvals | CE, FCC EMC: EN 55032/35, EN 61000-6-4, EN 61000-6-2 Rail Traffic: EN 50121-4 |
| Industrial Standard | EMI: FCC CFR47 Part 15,EN55032/CISPR22,Class A EMS: IEC61000-4-2(ESD) ±6kV(contact),±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz～2GHz) IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±1kV IEC61000-4-6(CS) 10V(150kHz～80MHz) Machinery: IEC60068-2-6 (vibration) IEC60068-2-27 (shock) IEC60068-2-32 (free fall) |
Ordering Information
|
Product Model |
SICOM3000S-Ports-PS1-PS2 |
|
Code definition |
Code selection |
|
Ports |
4GX8GP= 4×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports; 8×10/100/1000Base-T(X) RJ45 PoE ports |
|
PS1-PS2 |
L16-L16=48VDC (18-57VDC), redundant power inputs |
Accessories
|
Accessory Model |
Description |
|
SFP module |
See the selection table of industrial SFP module. |
|
DT-BGAZ-02 |
Panel for panel mounting |
|
DT-FCZ-RJ45-01 |
Single-port RJ45 dust plug |
