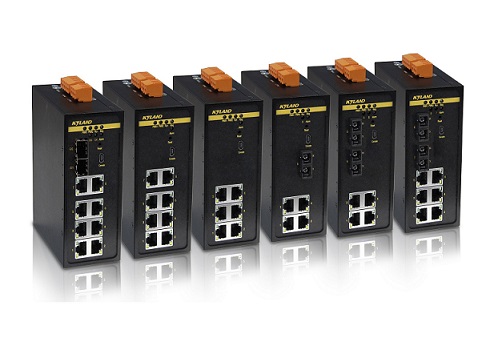

SICOM3000A-LITE
8+2G port layer 2 managed DIN-Rail switches
Product Overview

SICOM3000A-LITE is low power consumption Layer 2 DIN-Rail Managed Industrial Ethernet Switch. It is equipped with 2 100/1000M SFP ports and 8 10/100Base-T(X) RJ45 ports. SICOM3000A-LITE supports DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP, VLAN, multicast, QoS, SSH and many other Layer 2 software features, and supports CLI, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c/v3. It supports DDM, EtherNet/IP and Modbus/TCP. It is especially designed for harsh environments with wide operating temperature range, EMC level 3, IP40 protection class, and can be deployed in Factory automation, Transportation, Oil & gas and many other industrial applications.

Key Features

2 100Base-X, 1000Base-X SFP ports and 8 10/100Base-T(X) RJ45 ports
Supports Redundancy protocols: DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP
Supports Network Security: HTTPS/SSL, SSH, TACACS+, IEEE802.1X, Radius, User Classification, MAC address binding with switch ports
Supports CLI, Telnet, WEB management methods, Kyvision centralized management based on SNMPv1/v2c/v3
Supports EtherNet/IP and Modbus/TCP protocols
Supports DDM
Supports IP40 protection
CE, FCC certificates

Specifications
Software functions
Switching Supports VLAN, PVLAN
Supports GVRP
Supports port aggregation, LACP
Supports port flow control
Supports Rate limit based on flow (ACL Rate Limiter)
Supports Global broadcast storm suppression (QOS Storm Policing)
Redundancy Supports DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms
Supports DRP/DHP with the recovery time<20ms
Supports STP/RSTP/MSTP
Multicast Supports IGMP snooping
Supports GMRP
Supports static multicast
Supports IGMPv2/v3
Network Security Supports HTTPS/SSL
Supports SSH
Supports TACACS+
Supports IEEE802.1X
Supports RADIUS
Supports User Classification
Supports MAC address binding with switch ports
Service Quality Supports QoS, 802.1p(CoS), DSCP
Supports SP, WRR queue scheduling
Supports ACL
Industrial protocol Supports EtherNet/IP, Modbus/TCP
Management and Maintenance Supports Console, Telnet, WEB management methods
Supports SNMPv1/v2c/v3, Kyvision centralized management
Supports software upgrade by SFTP/HTTP
Supports Power alarm, IP/MAC conflict alarm, Memory/CPU usage alarm, Port alarm, Ring alarm, Port traffic alarm, CRC error and packet lose alarm, SFP port RX power alarm and TX power alarm
Supports DDM (SFP port)
Supports loop detection
Supports RMON
Supports port mirroring
Supports Syslog
Supports LLDP
Supports Link-check
Supports EtherNet/IP, Modbus/TCP
Supports IPv4/IPv6
IP management Supports DHCP server/snooping/client, DHCP Option 82
Supports ARP
Clock Management Supports SNTP Client
Product Specifications
Technical Parameter Standard
IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-T and 100Base-FX)
IEEE 802.3z (1000Base-SX/LX)
IEEE 802.3ad (Link aggregation)
IEEE 802.3x (Flow Control)
IEEE 802.1p (Class of Service)
IEEE 802.1Q (VLAN)
IEEE 802.1d (STP)
IEEE 802.1w (RSTP)
IEEE 802.1s (MSTP)
IEEE 802.1x (Network Access Control)
IEEE 802.1ab (LLDP)
Switch Properties Priority Queues 8
Number of VLANs 4K
VLAN ID 1~4094
Number of Multicast Groups 8K
MAC Table 8K
Packet Buffer 4Mbit
Packet Forwarding Rate 4.2Mpps
Switching Delay <5μs
Jumbo Frame Size 9.6KB
Interface Gigabit Port
100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP slot

Fast Ethernet Port
100Base-FX, SM/MM, SC/ST/FC connector
10/100Base-T(X), RJ45 port, Auto MDI/MDI-X connection

Console Port Mini USB
Alarm Contact 3-pin 5.08mm-spacing plug-in terminal block, 250VAC/220VDC Max, 2A Max
LED LEDs on Front Panel
Running LED: Run
Alarm LED: Alarm
Power LED: PWR1,PWR2
Ring LED: Ring
Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port)
Button Reset: Reboot and restore default configuration
Power Requirement Power Input 24-48VDC(18-72VDC), 12-24VDC(12-36VDC)
Power Terminal 5-pin 5.08 mm-spacing plug-in terminal block
Power Consumption <9W
Overload Protection Support
Reverse Protection Support
Redundancy Protection Support
Physical Characteristics Housing Metal
Cooling Natural convection, fanless
Protection Class IP40
Dimension 53.6mm×135mm×106.5mm (W×H×D)
Weight 0.84Kg
Mounting DIN-Rail or Panel Mounting
Environmental Limit Operating Temperature -40℃~+75℃
Storage Temperature -40℃~+85℃
Ambient Relative Humidity 5% to 95% (non-condensing)
Warranty MTBF 2671696h (2GX8T)
Warranty 5 years
Approvals CE, FCC
Industrial Standard EMI
FCC CFR47 Part 15,EN55032/CISPR22,Class A
EMS
IEC61000-4-2(ESD) ±6kV(contact),±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±1kV
IEC61000-4-6(CS) 10V(150kHz~80MHz)
Machinery
IEC60068-2-6 (vibration)
IEC60068-2-27 (shock)
IEC60068-2-32 (free fall)

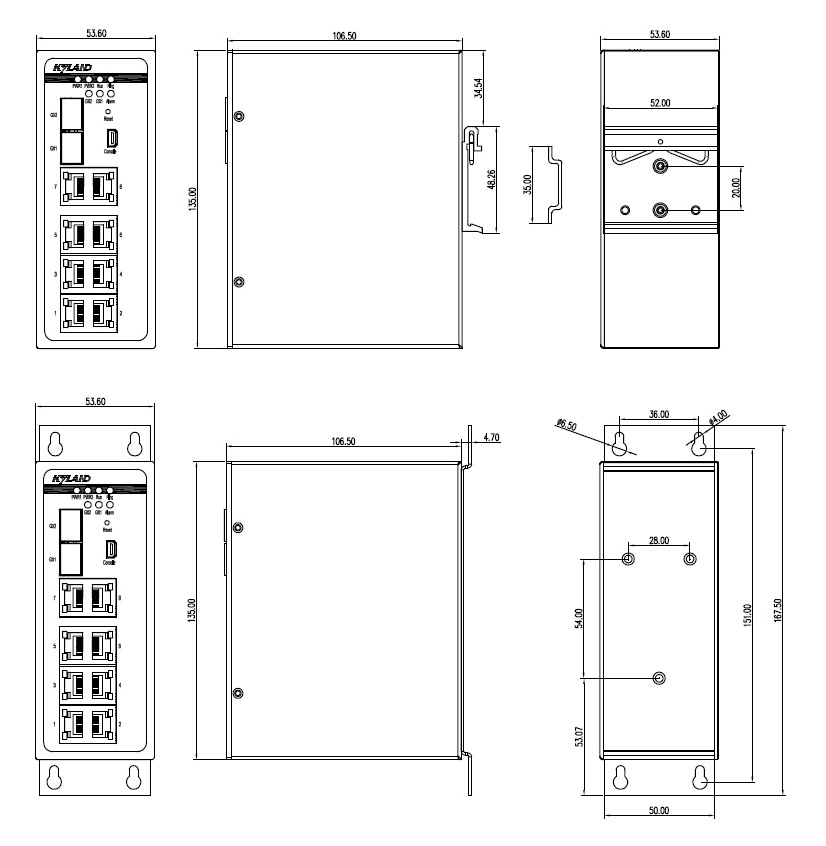

Mechanical Drawing




Ordering Information

Ordering Information

Product Model

SICOM3000A-LITE-Ports-Connector-PS1-PS2

Code definition

Code selection

Ports

6T=6×10/100Base-T(X) RJ45 ports

8T=8×10/100Base-T(X) RJ45 ports

1S4T=1×100Base-FX, single mode fiber ports; 4×10/100Base-T(X) RJ45 ports

1M4T=1×100Base-FX, multi mode fiber ports; 4×10/100Base-T(X) RJ45 ports

2S4T=2×100Base-FX, single mode fiber ports; 4×10/100Base-T(X) RJ45 ports

2M4T=2×100Base-FX, multi mode fiber ports; 4×10/100Base-T(X) RJ45 ports

2S6T=2×100Base-FX, single mode fiber ports; 6×10/100Base-T(X) RJ45 ports

2M6T=2×100Base-FX, multi mode fiber ports; 6×10/100Base-T(X) RJ45 ports

2GX8T=2×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports; 8×10/100Base-T(X) RJ45 ports

Connector

SC05=SC connector, multi mode,1310nm, 5km

ST05=ST connector, multi mode,1310nm, 5km

FC05=FC connector, multi mode,1310nm, 5km

SC40=SC connector, single mode,1310nm, 40km

ST40=ST connector, single mode,1310nm, 40km

FC40=FC connector, single mode,1310nm, 40km

SC60=SC connector, single mode,1310nm, 60km

SC80=SC connector, single mode,1550nm, 80km

NA: No 100Base-FX fiber port

PS1-PS2

L2-L2=24-48VDC (18-72VDC), redundant power inputs

L3-L3=12-24VDC (12-36VDC), redundant power inputs



Accessories

Accessory Model

Description

Gigabit SFP module

See the selection table of industrial gigabit SFP module.

DT-BGAZ-02

Panel for panel mounting

DT-FCZ-RJ45-01

Dustproof cover for RJ45 port

DT-XL- Mini USB -USB-2m

Mini USB to USB cable for Console management, 2m
