SICOM3009A is one of Kyland green low power consumption industrial Ethernet switch series. It is equipped with 3 100Base-FX optic ports and 6 10/100Base-TX copper ports, making it ideal for building a fast Ethernet fiber optic ring and leaving a spare fiber port for uplink use. SICOM3009A support DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), RSTP, VLAN, multicast, QoS, SSH, SSL and many other Layer 2 software features, and support CLI, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c/v3. It is especially designed for harsh environments with wide operating temperature range, EMC level 4, IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, It certified by CE, FCC, UL508 and CID2, KEMA, and can be deployed in wind power, distribution network automation, transportation, oil & gas and many other industrial applications.
| Software Functions | |
| Switching | Support VLAN,PVLAN Support GVRP Support port trunking Support port flow control Support port speed limit Support broadcast storm control |
| Redundancy | Support DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms Support DRP/DHP with the recovery time<20ms Support STP/RSTP |
| Multicast | Support IGMP Snooping Support GMRP Support static multicast |
| Network Security | Support HTTPs/SSL Support SSH Support TACACS+ Support IEEE802.1X Support MAC address binding with switch ports |
| Service Quality | Support SP, WRR queue scheduling |
| Management & Maintenance | Support Console, Telnet, WEB management methods Support SNMPv1/v2c/v3, Kyvision centralized management Support software upgrade by FTP/TFTP Support power, port and ring alarm Support loop detection Support CRC protection Support RMON Support port mirroring Support cable check Support Syslog Support LLDP Support Link-check |
| IP Management | Support DHCP server/snooping/client, DHCP Option 82 |
| Clock Management | Support SNTP Client |
| Technical Specifications | |
| Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-T and 100Base-FX) IEEE 802.3x (Flow Control) IEEE 802.1p (Class of Service) IEEE 802.1Q (VLAN) IEEE 802.1w (RSTP) IEEE802.1X |
| Switch Properties | Priority Queues: 4 Number of VLANs: 256 VLAN ID: 1–4093 Number of Multicast Groups: 256 MAC Table: 8K Packet Buffer: 1Mbit Packet Forwarding Rate: 1.4 Mpps Switching Delay:<5μs |
| Interface | Fast Ethernet Port: 100Base-FX, SM/MM, SC/ST/FC connector 10/100Base-T(X), RJ45 port Console Port: Mini USB Alarm Contact: 3-pin 5.08mm-spacing plug-in terminal block,250VAC/220VDC Max,2A Max |
| LED | LEDs on Front Panel Running LED: Run Alarm LED: Alarm (12/24/48VDC model) Power LED: PWR1,PWR2 Ring LED: Ring Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port) |
| Button | Reset: Reboot and restore default configuration |
| Power Requirements | Power Input: 100-240VAC, 50/60Hz; 110-220VDC(85-264VAC/77-300VDC) 24-48VDC(18-72VDC) 12-24VDC(9-36VDC) Power Terminal: 5-pin 5.08mm-spacing plug-in terminal block Power Consumption:<8.1w Overload Protection: Support ReverseProtection: Support Redundancy Protection: Support (12/24/48VDC) |

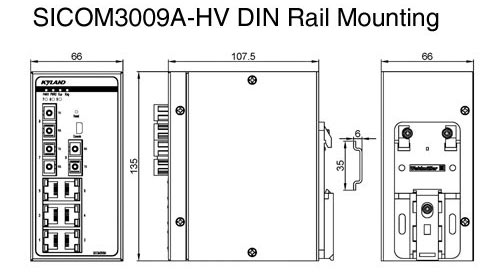

| Physical Characteristics | Housing: Metal Cooling: Natural convection, fanless Protection Class: IP40 Dimension: 53.6mm×135mm×106.5mm(W×H×D) (12/24/48VDC) 66mm×135mm×107.5mm (W×H×D) (220VAC/DC) Weight: 0.76Kg Mounting: DIN-Rail or Panel Mounting |
| Environmental Limits | Operating Temperature: -40°C to +85°C(12/24/48VDC) -40°C to +75°C(220VAC/DC) Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5-95% (non-condensing) |
| Quality Assurance | MTBF: 350,877 hrs Warranty: 5 years |
| Approvals | KEMA, CE(EMC), CE(LVD), FCC: Models with HV:100-240VAC,50/60Hz;110-220VDC UL508, Class I Div 2, CE(EMC), FCC: Models with L2:24-48VDC and L5:12-24VDC IEC 60950-1, EN 60950-1 |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD) ±8kV(contact),±15kV(air) IEC61000-4-3(RS) 10V/m(80MHz–2GHz) IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV IEC61000-4-5(Surge) Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS) 10V(150kHz–80MHz) Machinery: IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) Climatic environmental: IEC60068-2-1 Cold test IEC60068-2-2 Dry heat test IEC60068-2-14 Change of temperature test IEC60068-2-30 Damp heat cyclic test IEC60068-2-78 Damp heat steady state test |
| SICOM3009A-Ports-Connector-PS1-PS2 | |
| SICOM3009A-Ports-Connector-PS1 | |
| Ports | |
| 3S6T | 3x100Base-FX, single mode fiber port; 6x10/100Base-T(X) RJ45 ports |
| 3M6T | 3x100Base-FX, multi mode fiber port; 6x10/100Base-T(X) RJ45 ports |
| 2S6T | 2x100Base-FX, single mode fiber port; 6x10/100Base-T(X) RJ45 ports |
| 2M6T | 2x100Base-FX, multi mode fiber port; 6x10/100Base-T(X) RJ45 ports |
| 1S7T | 1x100Base-FX, single mode fiber port; 7x10/100Base-T(X) RJ45 ports |
| 1M7T | 1x100Base-FX, multi mode fiber port; 7x10/100Base-T(X) RJ45 ports |
| 8T | 8x10/100Base-T(X) RJ45 ports |
| Connector | 100M fiber port specifications |
| SC05 | SC connector, multi-mode, 1310nm, 5km |
| ST05 | ST connector, multi-mode, 1310nm, 5km |
| FC05 | FC connector, multi-mode, 1310nm, 5km |
| SC40 | SC connector, single-mode, 1310nm, 40km |
| ST40 | ST connector, single-mode, 1310nm, 40km |
| FC40 | FC connector, single-mode, 1310nm, 40km |
| SC60 | SC connector, single-mode, 1310nm, 60km |
| SC80 | SC connector, single-mode, 1550nm, 80km |
| NA | No 100Base-FX fiber port |
| PS1-PS2 | |
| L2-L2 | 24-48VDC (18-72VDC), redundant power inputs |
| L5-L5 | 12-24VDC (9-36VDC), redundant power inputs |
| PS1 | |
| HV | 100-240VAC, 50/60Hz; 110-220VDC (85-264VAC/77-300VDC), single power input |
| Accessories | |
| DT-BGAZ-02 | Panel for panel mounting |
| DT-FCZ-RJ45-01 | Dustproof cover for RJ45 port |
| DT-XL-Mini USB-USB-2m | Mini USB to USB cable for Console management, 2m |
