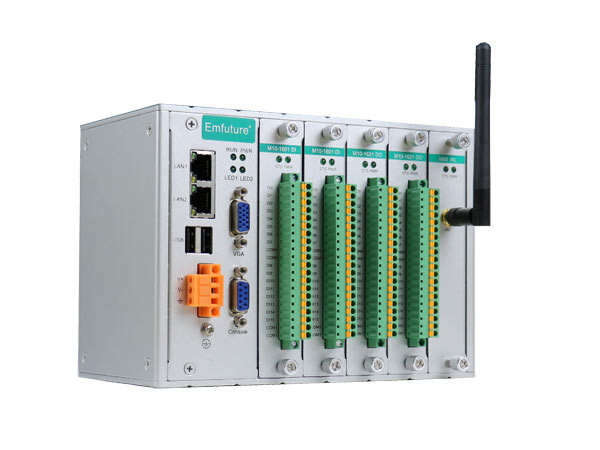

The ePAS-4100 series filed level industrial servers are equipped with a main processor based on industrial level Cortex-A8 processor in RISC architecture. Its basic frequency reaches 800MHz. The ePAS-4100 series also support 512M DDR3 SDRAM, 1GB Flash memory, 2 10/100/1000Mbps Ethernet ports, standard VGA display output, 2 high speed USB2.0 interfaces. Its embedded SD card can support massive data storage.
The ePAS-4100 series industrial servers are equipped with 5/9 function slots which support modules of analogue input/output, digital input/output, pulse input/output, mixed signal input/output, wireless and locating modules (including WIFI, Bluetooth, ZIGBEE, GPRS/3G/4G, Beidou/GPS etc.), protocol conversion modules, bus interface modules (including serial, CAN, Ethernet etc.) and other specialized modules such as Ethernet switching modules, FPGA based high speed data collecting modules. User-defined function modules are also supported. Most of the industrial automation application scenarios can be covered through the combination of these multiple function modules which provides customers high flexibility and efficiency to realize the functions they needed.
The ePAS-4100 series industrial servers support cascading which especially fits the needs for the sites with lots of I/O points.
The ePAS-4100 series industrial servers are in compact structure design, and supports both wall mounting and DIN Rail mounting installation. The housing is in high strength industrial Aluminum material with IP42 protection class. ePAS-4100 supports dual redundant AC/DC power supplies with phoenix terminal blocks which ensures high reliability, easy deployment and installation.
The ePAS-4100 series industrial servers support Linux3.12/WinCE7.0 embedded OS, provide users an open software platform with high efficiency supporting C/C++ programming and EMFuture EMIDE development platform.
Industrial Cortex-A8 processor, 800MHz basic frequency
512MB DDR3 SDRAM, 1GB Flash
2 10/100Mbps Ethernet ports, supporting cascading
Standard VGA display interface
2 USB2.0 interface
Massive SD card interface
Supports 5/9 functional slots and flexible functional modules
Supports C/C++ programming
Supports multiple devices cascading, meeting the needs for applications with lots of I/O
Compact structure design, specially designed for harsh industrial environments
Embedded temperature sensors to monitor the environment temperature
Embedded RTC with backup batteries
Supports embedded Linux/WinCE OS
Supports wide operating temperature from -40 to 80°C
| Hardware Specifications | |
| Main System | CPU: Industrial Cortex-A8 embedded processor, 800MHz RAM: 512MB DDR3 SDRAM Flash: 1GB Flash Memory: Massive memory SD card interface |
| Ethernet Ports | LAN: 10/100/1000Mbps Ethernet ports, RJ45 Insulation protection: 15KV ESD, 8KV contact discharging protection |
| Console Serial Port | Console: 3 wire (TxD, RxD, GND), DB9 interface |
| USB Interface | Standard: USB2.0, A type interface |
| VGA Interface | VGA: standard VGA interface, 24 bit data Resolution: 1366x768 |
| Extended Interface | Analogue input/output modules Digital input/output modules Pulse input/output modules Mixed signal input/output modules Wireless and locating modules (including WIFI, Bluetooth, ZIGBEE, GPRS/3G/4G, Beidou/GPS etc.) Protocol conversion modules Serial interface modules Ethernet ports modules CAN bus interface modules Ethernet switching modules FPGA based high speed data collection modules User self-defining functional modules |
| LED | System: Power, Running Serial: TXD/RXD Network: ACT/LINK |
| Button | Function: Support “Reset to default” |
| Mechanical Features | Housing: Ultralumin Weight: 1.5KG (5 slots) / 2.5KG (9 slots) Dimension: 190x135x100mm (5 slots), 190x135x100mm (9 slots) Installation: Wall mount, DIN Rail installation |
| Environmental limits | Operating temperature: -40 to 80°C Ambient relative humidity: 5-95% RH Storage temperature: -50 to 100°C Anti-vibration: 1G @ IEC-68-2-6, sin wave, 5-500Hz, 1 Oct./min, 1 hr/axis Shock resistance: 5G @ IEC-68-2-27, semi sin wave, 30ms |
| Power Requirements | Power inputs: 9-36VDC (12VDC/24VDC recommended); Optional dual redundant power supplies; 85-305VAC/100-430VDC Power consumption: <5W |
| Reliability | Alarm tool: Build-in buzzer and RTC Temperature monitoring: Build-in temperature sensor for temperature monitoring Watchdog: Hardware watchdog (WDT) monitoring MTBF: >100,000 hrs |
| Warranty | 5 years |
| Software Specifications | |
| Linux pre-install | OS: 3.12 BootLoader: UBoot File system: JFFS2, YAFFS2, NFS, Ext2, Ext3 Protocol suite: TCP，UDP，IPv4，ICMP，ARP，HTTP，CHAP，PAP，DHCP，NTP，NFS, Telnet，FTP，TFTP，PPP，PPPoE Network security: iptables firewall Embedded web server: Being able to create and manage the website, supporting PHP and XML Terminal Server (SSH): To create an encrypted channel for two untrusted terminals on a network without security mechanisms Dial-up network service (PPP): PPP daemons under Linux. Being able to dial in/out through PPP and realize the network connection with other terminals. File server: Allow users to access the file and resources. Watchdog: Realize the system reboot through CPU hardware within the specified time (system management/user management) Web-based system configuration and test service: Supports IE and other browsers. Programming: C/C++ Communication protocols: Modbus/TCP, Modbus/RTU Master |
| Windows Embedded CE 7.0 | OS: Windows Embedded CE 7.0 File system: FAT Protocol Suite: TCP，UDP，IPv4，SNMPv2，ICMP，IGMP，ARP，HTTP，CHAP，PAP，SSL，DHCP，SNTP，SMTP，Telnet，FTP，PPP |
| Web server (WINCE IIS) | Supports ASP, ISAPI Secure Socket Layer (SSL 2/3) and Transport Layer Security (TLS/SSL 3.1) public key-based protocols, and Web Administration ISAPI Extensions Dial-up network service: RAS client API and PPP, supports EAP and RAS scripts Watchdog service: Realize the system reboot through CPU hardware within the specified time (triggered by calling certain functions) |
| Application development kits | WinCE 7.0 SDK WinCE 7.0 API Library C Libraries and Run-times Component Services（COM and DCOM） Microsoft® .NET Compact Framework 3.5 XML，including DOM，XQL，XPATH，XSLT，SAX，SAX2 SOAP Toolkit Client Winsock 2.2 |
ePAS-4100-5: 800MHz, RISC architecture field level industrial server, 2 Ethernet ports, standard VGA, USB, SD storage interface, 5 functional slots, flexible function extension.
ePAS-4100-9: 800MHz, RISC architecture field level industrial server, 2 Ethernet ports, standard VGA, USB, SD storage interface, 9 functional slots, flexible function extension.
