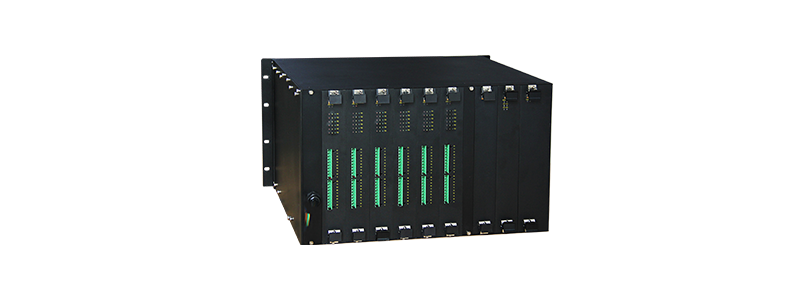

HOURSIS2025 is an up-to-date product by introducing the proven Industrial Internet techniques. It intensively integrates traffic control, traffic detection,traffic mage process, traffic cloud data process and etc. in the way of network + computation mode with the built-in control strategies. It can be adapted to the complex traffic management and control sites and compliant with NTCIP protocols.
CPU Processor: 2 quad-core industrial CPUs
Clock: Supports high-accuracy industrial calibration
Driver Board: 12 individual two-wire Ethernet I/Os, 24V DC output, 240V AC output
Network Connection: 4 1000Mbps fibers, 8 RJ45s. 12 two-wire ethernets
Serial Port: 8 RS-485s
Multiple Outdoor Cabinet Available
Technical Specification | |
Edge Computing | Supplies rich computing ability, supports secondary customization and development Applied with real-time operating system, being able to handle concurrent processing for multi tasks |
Coexistence of multiple business | Being able to handle concurrent tasks including traffic control, video processing, violation monitoring, data retrieval |
Data Storage | Build-in SSD May be expanded up to 2TB |
Controling Methods | Acutated Control Planned Acutated Control Cableless Link (CLF) Centralized Control Local Optimized Control Pedestrian Control Manual Control Emergency Call Control Priority Control |
Detector Connection | Standard IO ports Serial ports Wired and wireless networks |
Timing Plan Support | Up to 128 timing plans may be stored Up to 32 steps for each plans Customizable lamp sequences May control multiple intersections with one machine |
Schedule Support | Up to 16 date-time schedule Up to 16 64 events plans |
Clock Calibration | GPS or high-accuracy center clock calibration |
Equipments Driver | Support more than 32 phases drivers Support more than 64 detectors input |
Product specifications | |
Technical Standards | GB25280 GB/T20999-2007 NTCIP |
Safety Protection | Individual amber flashing Individual conflict detection Double power supply |
Ports Standards | Two-wired ethernet ports 2ESDV-08P 24V DC 2ESDV-08P 220V AC 2ESDV-08P RS485 2ESDV-08P IO inputs 2ESDV-08P 1000Mbps ethernet ports 10/100/1000Base-T(X) 100Mbps ethernet ports 10/100bpsRJ45 |
Lights Legends | Front side: Running: RUN Power:PWR 24V DC:24VDC OUT1/OUT2 220V AC: 220AC OUT1/OUT2 Phase **: P** Detector **:D** |
Power | 220V AC |

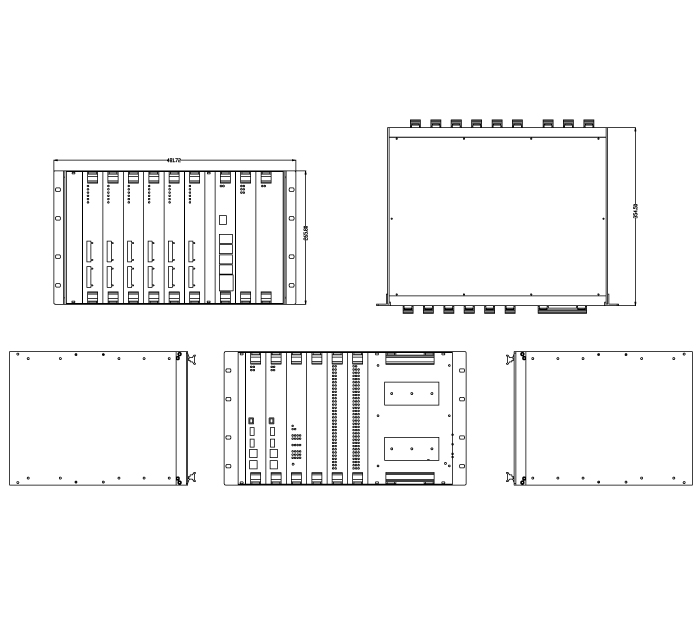

Structure | Casement, Metal Cooling, Passive Radiating Installation, Standard 19” outdoor cabinet |
Working Environment | Working Temperature -20 ~ +65 ℃ Storage Temperature -40 ~ +105 ℃ |
Warranty | Warranty 3 years |
