The KIEN1009 series are Kyland ultra low power consumption Green Ethernet series, offering abundant port combinations and supporting 1 optional Gigabit uplink port and 8 Fast Ethernet ports, plug and play. The solid metal housing with IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, wide operating temperature range from -40°C to 85°C, and excellent EMC performance give the switches an stable and reliable operating capability in the harsh industrial environments. The KIEN1009 series has been certified by CE, FCC, UL508 and CID2, making them ideal for setting up robust Fast Ethernet connection in the global power, ITS, factory automation, video survelliane and other industrial applications.
1 optional uplink Gigabit SFP port , 2 fast Ethernet fiber/RJ45 optional ports, 6 10/100Base-T(X) ports
EMC performance reaches industrial level 4
IP40 protection class
UL508, Class I Div 2, CE, FCC certificates
| Technical Specification | |
| Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-TX and 100Base-FX) IEEE 802.3z (1000Base-X) |
| Switch Properties | MAC Table: 8K Packet Buffer: 1Mbit Packet Forwarding Rate: 1.4Mpps Switching Delay:<10μs |
| Interface | Interface Gigabit Port: 1000Base-X, SFP slot Fast Ethernet Port: 100Base-FX, SM/MM, SC/ST/FC connector 10/100Base-T(X), RJ45 port |
| LED | LEDs on Front Panel Power LED: PWR1, PWR2 Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(fiber port) |
| Power Requirements | Power Input: 24-48VDC 12-24VDC 100-240VAC,50/60Hz; 110-220VDC Power Terminal: 5-pin 5.08mm-spacing plug-in terminal block (12/24/48VDC) 3-pin 5.08mm-spacing plug-in terminal block (220VAC/DC) Power Consumption: <6.5W (12/24/48VDC) <7.5W (220VAC/DC) Overload Protection: Support Reverse Protection: Support Redundancy Protection Support: (12/24/48VDC) |

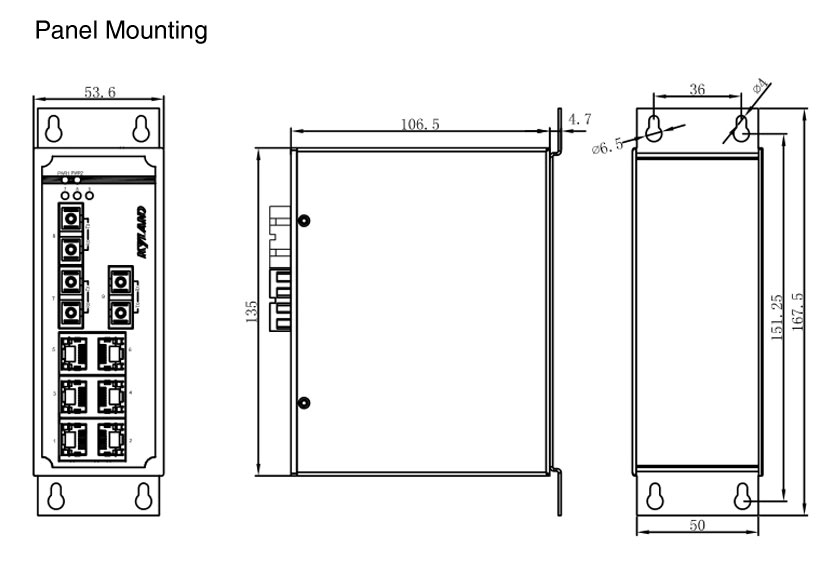

| Physical Characteristics | Housing: Metal Cooling: Natural convection, fanless Protection Class: IP40 Dimension: 53.6mm×135mm×106.5mm (W×H×D)(12/24/48VDC) 66mm×135mm×106.5mm (W×H×D) (220VAC/DC) Weight: 0.76Kg Mounting: DIN-Rail or Panel Mounting |
| Environmental Limits | Operating Temperature: -40°C to +85°C(12/24/48VDC) -40°C to +75°C(220VAC/DC) Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5-95% (non-condensing) |
| Quality Assurance | MTBF: 397000h Warranty: 5 years |
| Approvals | CE(EMC): Models with L2 (24-48VDC) & L5 (12-24VDC) & HV(HV:100-240VAC,50/60Hz;110-220VDC) CE(LVD): Models with L2 (24-48VDC) & HV(HV:100-240VAC,50/60Hz;110-220VDC) FCC: Models with L2 (24-48VDC) & L5 (12-24VDC) & HV(HV:100-240VAC,50/60Hz;110-220VDC) UL508: Models with L2 (24-48VDC) UL Class I Div 2: Models with L2 (24-48VDC) IEC 60950-1, EN 60950-1 |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD) ±8kV (contact), ±15kV (air) IEC61000-4-3(RS) 10V/m (80MHz–2GHz) IEC61000-4-4(EFT) Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5(Surge) Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS) 10V(150kHz–80MHz) Machinery: IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
| KIEN1009-Ports-Connector-PS1-PS2 | |
| KIEN1009-Ports-Connector-PS1 | |
| Ports | |
| 1GX2S6T | 1x1000Base-X, SFP slots; 2x100Base-FX, single mode fiber ports; 6x10/100Base-T(X) RJ45 ports |
| 1GX2M6T | 1x1000Base-X, SFP slots; 2x100Base-FX, multi mode fiber ports; 6x10/100Base-T(X) RJ45 ports |
| 3S6T | 3x100Base-FX, single mode fiber ports; 6x10/100Base-T(X) RJ45 ports |
| 3M6T | 3x100Base-FX, multi mode fiber ports; 6x10/100Base-T(X) RJ45 ports |
| 2S6T | 2x100Base-FX, single mode fiber ports; 6x10/100Base-T(X) RJ45 ports |
| 2M6T | 2x100Base-FX, multi mode fiber ports; 6x10/100Base-T(X) RJ45 ports |
| 1S7T | 1x100Base-FX, single mode fiber ports; 7x10/100Base-T(X) RJ45 ports |
| 1M7T | 1x100Base-FX, multi mode fiber ports; 7x10/100Base-T(X) RJ45 ports |
| 8T | 8x10/100Base-T(X) RJ45 ports |
| Connector | 100M fiber port specifications |
| SC05 | SC connector, multi-mode, 1310nm, 5km |
| ST05 | ST connector, multi-mode, 1310nm, 5km |
| FC05 | FC connector, multi-mode, 1310nm, 5km |
| SC40 | SC connector, single-mode, 1310nm, 40km |
| ST40 | ST connector, single-mode, 1310nm, 40km |
| FC40 | FC connector, single-mode, 1310nm, 40km |
| SC60 | SC connector, single-mode, 1310nm, 60km |
| SC80 | SC connector, single-mode, 1550nm, 80km |
| None | No 100M fiber port |
| PS | |
| L2-L2 | 24-48VDC, redundant power inputs |
| L5-L5 | 12-24VDC, redundant power inputs |
| HV | 100-240VAC, 50/60Hz; 110-220VDC, single power input |
| Accessories | |
| Gigabit SFP module | Please refer to the Gigabit SFP module ordering list |
| DT-BGAZ-02 | Panel for panel mounting |
| DT-FCZ-RJ45-01 | Dustproof cover for RJ45 port |
