KyAir-Bridge is an 802.11a/n 5G industrial-grade, outdoor high-performance wireless bridge that supports Passive PoE power supply, providing high-quality wireless coverage and backhaul.
Supports 802.11a/n standards and 2x2 MIMO standards with a maximum transmission rate of 300 Mbps.
Transmission range: 0 - 2 kilometers. Integrated antenna, quick installation.
Frequency (channel) expansion function: By choosing more frequencies, interference caused by the same or adjacent channels can be eliminated.
Channel width selection: By adjusting the channel width, parts of the spectrum that are overlapped for use can be avoided, reducing the impact of interference from other channels.
Supports bridge and routing modes. By adjusting the network mode of the device, a flexible deployment of the network architecture can be achieved. Intelligent QoS wireless multimedia optimization technology ensures priority for voice and video transmission stability.
Supports web management, making the installation and maintenance of the device more convenient.
Supports wireless controller (AC) management, enabling remote centralized configuration and upgrade management.
Protection level IP65, adaptable to various environments.
| Technical Specification | |

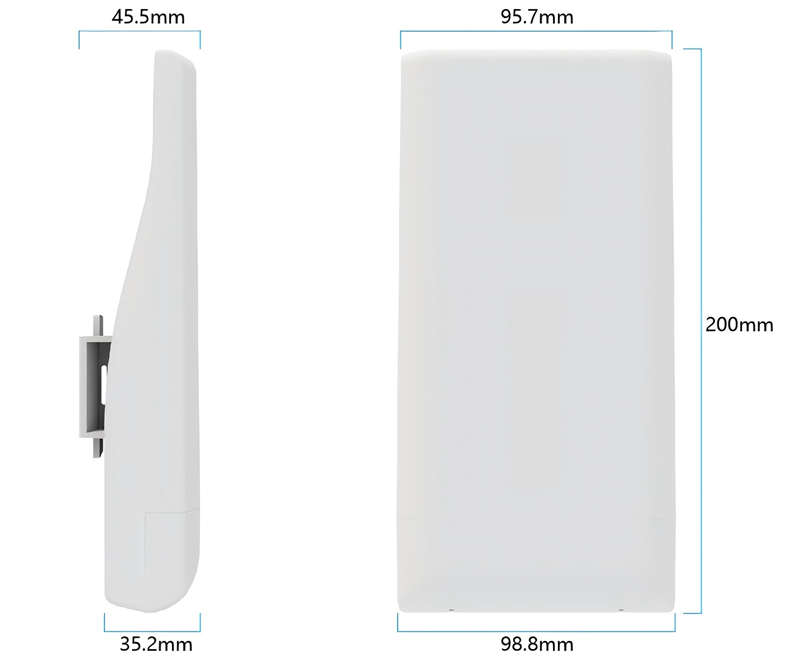

| Dimension | 200x98.8x45.5mm |
| Weight | 0.25Kg |
| Mounting | Hoop Mount, Pole diameter ≤ 50mm |
| Protection Class | IP65 |
| Antenna gain | 10dBi |
| Antenna beam width | Horizontal angle: 65°, Vertical angle: 18° |
| Power Input | 24V Passive PoE |
| Power Consumption | 10W |
| Processor | AR9344 |
| Memory storage | 64MB DDR2, 8MB Flash |
| Interface | 2 * 10/100Mbps |
| LED | 1 * Power LED 1 * LAN LED 1 * WLAN LED 3 * Signal strength indicator light LED |
| Maximum transmission power | 24dBm |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Ambient Relative Humidity | 5-95% (non-condensing) |
| Surge immunity | Common mode 4KV, differential mode 2KV |
| Electrostatic discharge immunity | IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air) |
| Wind resistance speed | 134Km/h |
| Work protocol | 802.11a/n |
| Security features | WPA2-PSK, Hide SSID, IP/MAC filter |
| Network mode | Bridge / Router |
| Frequency range | 5180 - 5320, 5745 - 5825 MHz (Supports frequency extension; extended range: 4920 - 6100 MHz) |
| Work mode | Access point, Client, WDS access point, WDS client |
| Management | Supports web management Supports remote management via AC |
| Others | Scheduled restart, support VLAN, QoS, WatchDog |
| Product Model | Description |
| KYAIR-SZ-110 | 2KM wireless bridge, support 2 x 10/100Mbps Ethernet ports. |
