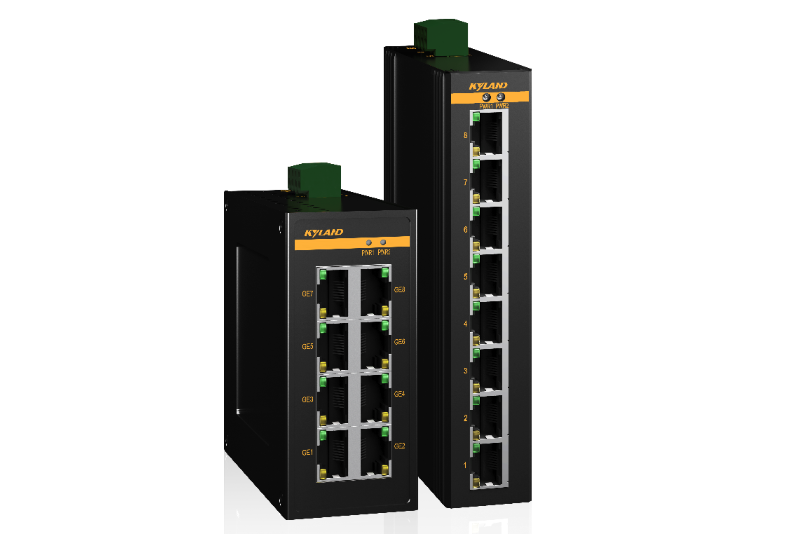

Opal8GL unmanaged 8-port switch is characterized by its full Gigabit interface, compact size, economical and plug-and-play design, generally used to connect the high bandwidth Ethernet in factory automation, petrochemical, ITS, and other applications. Opal8GL supports 8 10/100/1000Base-TX RJ45 ports, redundant power inputs, built-in isolated power supply, metal housing with IP30/IP40 protection class, thus ensuring fast and reliable data transmission in harsh industrial environments. Opal8GL provides both standard (-10°C to 60°C) and wide (-40°C to 75°C) operating temperature range models to meet different applications.
Support 8 10/100/1000Base-T(X) ports
Built-in isolated power supply, Full load power consumption is as low as 5 W
Both standard and wide operating temperature models are available
Jumbo frame transmission function (up to 9KB)
EMC level 3
IP30/IP40 protection class
| Technical Specification | |
| Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-TX ) IEEE 802.3ab (1000Base-T) IEEE 802.3x (Flow Control) |
| Switch Properties | MAC Table: 4K Packet Buffer: 1.5Mbit Packet Forwarding Rate: 11.9Mpps Switching Delay:<5μs Jumbo Frame Size: 9KB |
| Interface | Gigabit Port: 10/100/1000Base-T(X), RJ45 port |
| LED | LEDs on Front Panel Power LED: PWR1, PWR2 Interface LED: Link/ACT, Speed (RJ45 port) |
| Power Requirements | Power Input: 12-48VDC/18-30VAC Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block Power Consumption: 5W Overload Protection: Support Reverse Protection: Support Redundancy Protection: Support |
| Physical Characteristics | Housing: Metal Cooling: Natural convection, fanless Protection Class: IP40(Opal8GL), IP30(Opal8GL-W) Dimension: 31mm×147mm×94mm(Opal8GL), 45.6mm×100.5mm×101mm(Opal8GL-W) (W×H×D) Weight: 0.4Kg(Opal8G), 0.3Kg(Opal8G-W) Mounting: DIN-Rail or Panel Mounting |
| Environmental Limits | Operating Temperature: -10°C to +60°C (-E) -40°C to +75°C Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5–95% (non-condensing) |
| Quality Assurance | MTBF: 7862765 hrs(Opal8G), 6856926 hrs (Opal8G-W) Warranty: 5 years |
| Approvals | CE, FCC UL61010, Class I Div 2 |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55032/CISPR22,Class A EMS: IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air) IEC61000-4-3(RS): 10V/m (80MHz–2GHz) IEC61000-4-4(EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V (150kHz–80MHz) Machinery: IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |

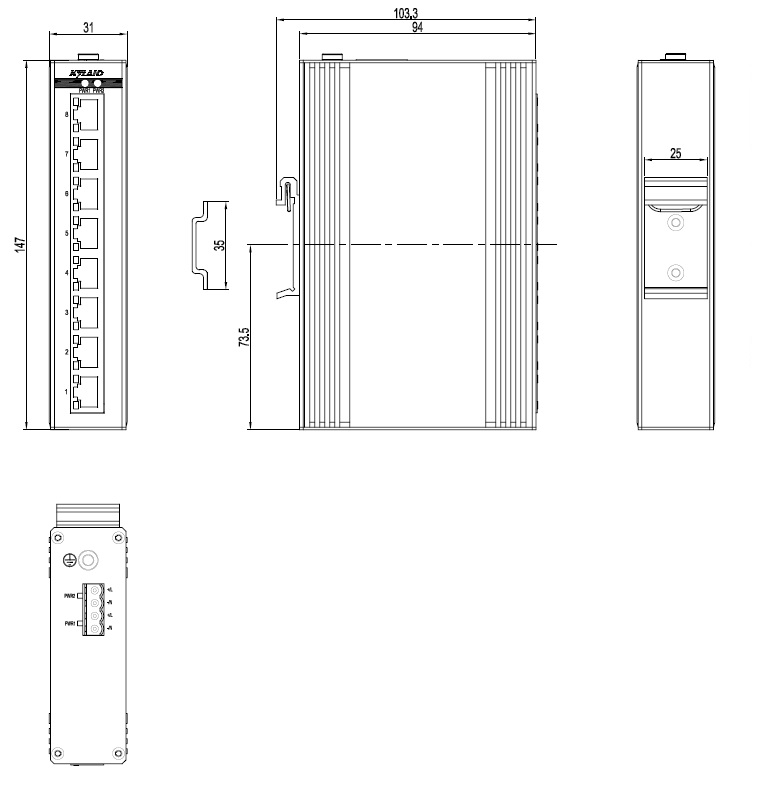

Opal8GL:

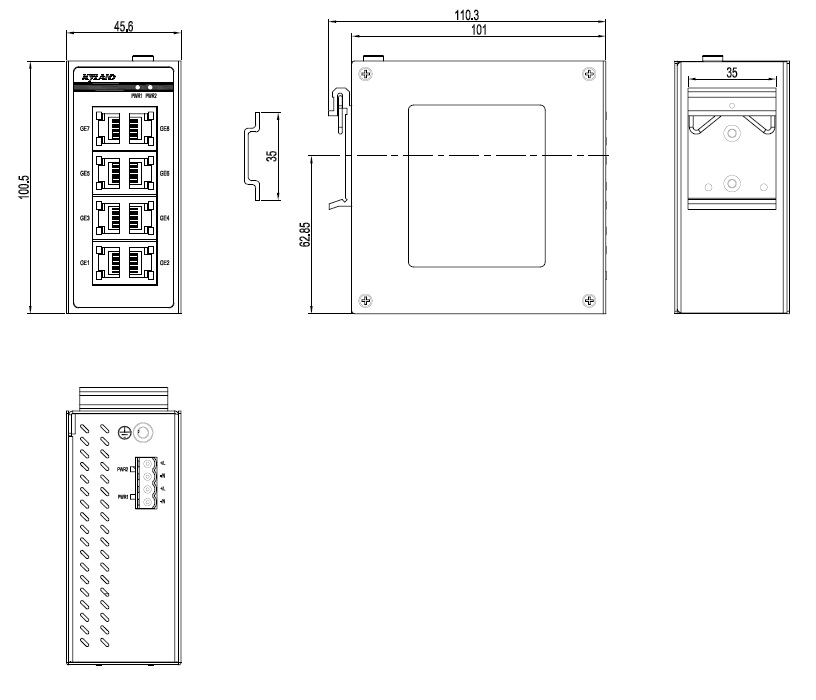

Opal8GL-W:
|
Opal8GL-X1-Ports-PS1-PS2-X2 |
|
|
X1 |
Operating temperature range |
|
E |
-10 to +60°C operating temperature |
|
None |
-40 to+75°C operating temperature |
|
Ports |
|
|
8GE |
8 X 10/100/1000Base-T(X) RJ45 ports |
|
PS1-PS2 |
|
|
LV-LV |
12-48VDC/18-30VAC, redundant power inputs |
|
X2 |
|
|
None |
31mm×147mm×94mm (W×H×D) |
|
W |
45.6mm×100.5mm×101mm (W×H×D) |
|
|
|
|
Accessories |
|
|
DT-FCZ-RJ45-01 |
Dustproof cover for RJ45 port |
Kyland-Opal8GL-Datasheet-EN.pdf
