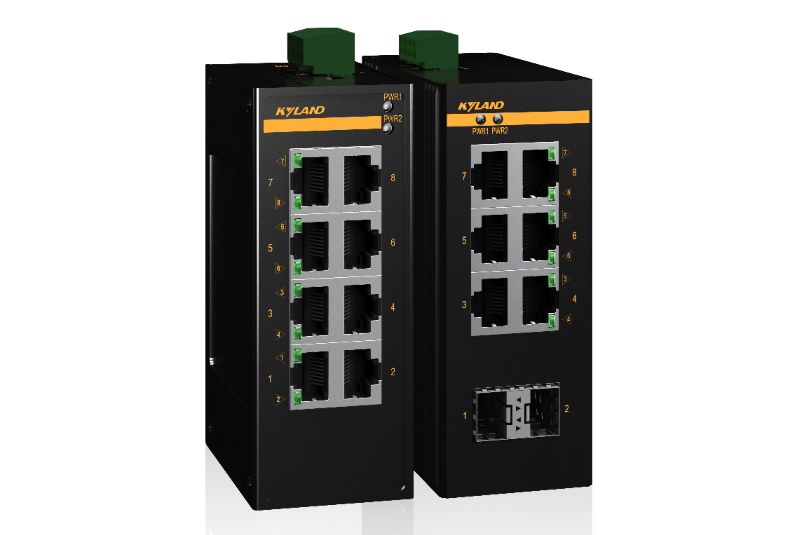

Opal8L
8 port unmanaged DIN-Rail switches
Product Overview

Opal8L unmanaged 8-port switch is specially designed for automation control applications. It is equipped with two fast Ethernet fiber/RJ45 optional ports and 6 10/100Base-TX RJ45 ports. Opal8L supports SFP type fiber ports, redundant power inputs, built-in isolated power supply, metal housing with IP30/IP40 protection class, thus ensuring fast and reliable data transmission in harsh industrial environments. Opal8L provides both standard (-10°C to 60°C) and wide (-40°C to 75°C) operating temperature range models to meet different applications.

Key Features

Support 2 Fast Ethernet fiber/RJ45 optional ports, 6 10/100Base-T(X) ports
Built-in isolated power supply, Full load power consumption is as low as 3.4 W
Both standard and wide operating temperature models are available
EMC level 3
IP30/IP40 protection class

Specifications
Technical Specification
Standard IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-TX and 100Base-FX)
IEEE 802.3x (Flow Control)
Switch Properties MAC Table: 2K
Packet Buffer: 1Mbit
Packet Forwarding Rate: 1.2Mpps
Switching Delay:<10μs
Interface Fast Ethernet Port:
100Base-X, SFP slot
10/100Base-T(X), RJ45 port
LED LEDs on Front Panel
Power LED: PWR1, PWR2
Interface LED: Link/ACT (RJ45 port); Link/ACT (Fiber port)
Power Requirements Power Input: 12-48VDC/18-30VAC
Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block
Power Consumption: 2.2W(8T), 3.4W(2SFP6T)
Overload Protection: Support
Reverse Protection: Support
Redundancy Protection: Support
Physical Characteristics Housing: Metal
Cooling: Natural convection, fanless
Protection Class: IP30(8T), IP40(2SFP6T)
Dimension: 45.6mm×114.5mm×68mm(8T), 45.6mm×114.5mm×95mm(2SFP6T) (W×H×D)
Weight: 0.3Kg(8T), 0.35Kg(2SFP6T)
Mounting: DIN-Rail or Panel Mounting
Environmental Limits Operating Temperature:
-10°C to +60°C (-E)
-40°C to +75°C
Storage Temperature: -40°C to +85°C
Ambient Relative Humidity: 5-95% (non-condensing)
Quality Assurance MTBF: 6106558 hrs (8T), 8301541 hrs (2SFP6T)
Warranty: 5 years
Approvals CE, FCC
UL61010, Class I Div 2
Industry Standard EMI:
FCC CFR47 Part 15,EN55032/CISPR22,Class A
EMS:
IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air)
IEC61000-4-3(RS): 10V/m (80MHz–2GHz)
IEC61000-4-4(EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±2kV
IEC61000-4-6(CS): 10V (150kHz–80MHz)
Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)
Mechanical Drawing

Opal8L-8T:

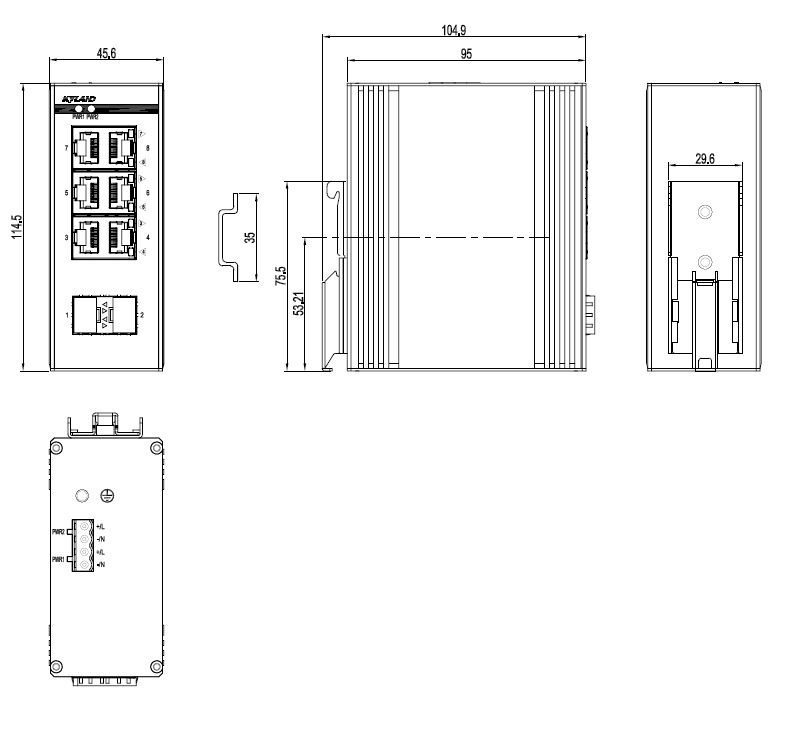

Opal8L-2SFP6T:

Ordering Information

Opal8L-X-Ports-PS1-PS2

X

Operating temperature range

-10 to +60°C operating temperature

None

-40 to +75°C operating temperature

Ports



8T

8 X 10/100Base-T(X) RJ45 ports

2SFP6T

2 X 100Base-X, SFP slots; 6 X 10/100Base-T(X) RJ45 ports

PS1-PS2



LV-LV

12-48VDC/18-30VAC, redundant power inputs





Accessories



100Base-X SFP module

Please refer to the 100Base-X SFP module ordering list

DT-BGAZ-01

Panel for Panel mounting

DT-FCZ-RJ45-01

Dustproof cover for RJ45 port
