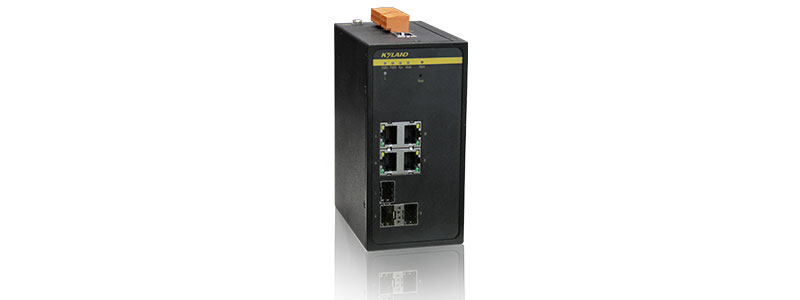

Ruby3A from Kyland is specially designed for reliable industrial networking realizing both PRP (Parallel Redundancy Protocol) and HSR (High-availability Seamless Redundancy) which are defined in IEC62439-3. The Ruby3A provides the ultimate in network reliability and zero failover time from network faults. Full FPGA hardware solution enables Kyland Ruby3A low switching latency and PRP/HSR is selectable via software with the same hardware platform. Precision time synchronization in accordance with IEEE 1588v2 is supported on Kyland Ruby3A.
Compliant implementation of both PRP (IEC62439-3-4) and HSR (IEC62439-3-5)
Supports combo ports as HSR/PRP port
Supports hardware based IEEE1588v2
Supports reset button for system reboot
Out of Band Management Port
Complies with IEC61850-3 and IEEE1613
| Software functions | |
| Redundancy protocol | Support HSR and the recovery time is 0 ms Support PRP and the recovery time is 0 ms Support PRP/HSR Coupling Support Quadbox mode |
| Management and maintenance | Support Console and Web management Support Telnet Support CLI Support SNMPv1/v2c Support SNMPv3 Support LLDP Support DHCP client Support software update Support configuration download Support configuration upload Support FTP Support Syslog Support Alarm Support Cable test Support Port speed auto-negotiation Support IEC61850 MMS server |
| Time synchronization | Support PTPv2(IEEE1588-2008) transparent precision<1us Support NTP server/client Support SNTP |
| Security | Support SSH Support SFTP Support HTTPs/SSL Support Radius/Tacacs+ Support AAA, Line |
| Product Specifications | |
| Standard | IEEE 802.3ab(1000Base-T) IEEE 802.3z(1000Base-SX/LX) IEEE 802.3u(100Base-TX和100Base-FX) IEC62439-3-5(HSR, Edition 3.0 update ready) IEC62439-3-4(PRP, Edition 3.0 update ready) |
| Interface | Gigabit ports： 1000Base-X, 100Base-FX, SFP port 100/1000Base-T(X), RJ45 port Console port：RS232,RJ45 Alarm contact： 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC/220 VDC Max, 2 A Max, 60 W Max |
| LED | LED on front panel： Running LED: Run Alarm LED: Alarm Power LED: PWR1, PWR2 Local port link LED: L HSR/PRP mode LED:Mode Port LED：Link/ACT |
| Button | Reset: supports system reboot |
| Power Requirements | Power input： 24-48VDC(18-72VDC), 100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC) Power terminal： 5-pin 5.08 mm-spacing plug-in terminal block（L2/HV-HV） 3-pin 7.62 mm-spacing plug-in terminal block（HV） Power consumption：<8W Overload protection：Support Reverse connection protection：Support Redundancy protection：Support |

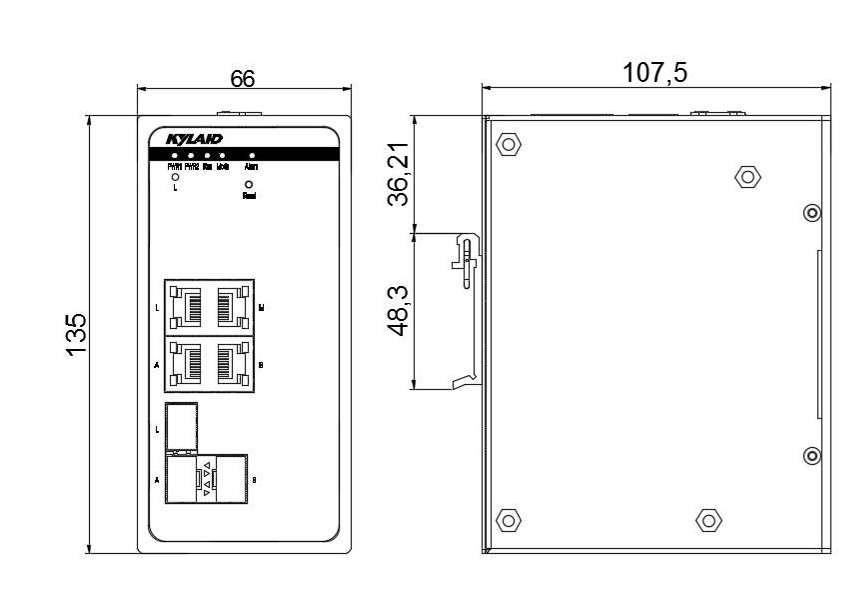

| Physical Characteristics | Housing：Metal Cooling：Natural cooling, fanless Protection Class：IP40 Dimensions(WxHxD)：66×135×107.5 mm; 88 x 137 x 135 mm(HV-HV) Weight：1.25Kg Mounting：Din-rail or panel mounting |
| Environmental limits | Operating temperature: -40°C to +85°C Storage temperature: -40°C to +85°C Ambient Relative Humidity: 5% - 95% (non-condensing) |
| Quality assurance | MTBF：351889h Warranty：5 years |
| Approvals | CE, FCC EMC: EN 55032/35, EN 61000-6-4, EN 61000-6-2 Rail Traffic: EN 50121-4 IEC61850-3, IEEE1613 IEC 62368-1, EN 62368-1 |
| Industry standard | EMI：FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS： IEC61000-4-2(ESD) ±8kV(contact),±15kV(air) IEC61000-4-3(RS) 10V/m(80MHz-2GHz) IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV IEC61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV IEC61000-4-6(CS) 3V(10kHz-150kHz);10V(150kHz-80MHz) IEC61000-4-16(common mode conduction) 30V(cont.),300V(1s) Machinery： IEC60068-2-6 (vibration) IEC60068-2-27 (shock) IEC60068-2-32 (free fall) |
|
Product Model |
Description |
|
Ruby3A-3G-HV |
3x1000Base-X, 100Base-X, 100/1000Base-T(X) Combo ports; 100-240VAC,50/60Hz; 110-220VDC(85-264VAC/77-300VDC), single power input |
| Ruby3A-3G-HV-HV | 3x1000Base-X, 100Base-X, 100/1000Base-T(X) Combo ports; 100-240VAC,50/60Hz; 110-220VDC(85-264VAC/77-300VDC), redundant power inputs |
|
Ruby3A-3G-L2-L2 |
3x1000Base-X, 100Base-X, 100/1000Base-T(X) Combo ports; 24-48VDC(18-72VDC), redundant power inputs |
| Accessory Model | Description |
| Gigabit SFP module | See the selection table of industrial gigabit SFP module. |
| 100M Fiber SFP Module | See the selection table of industrial 100M Fiber SFP module. |

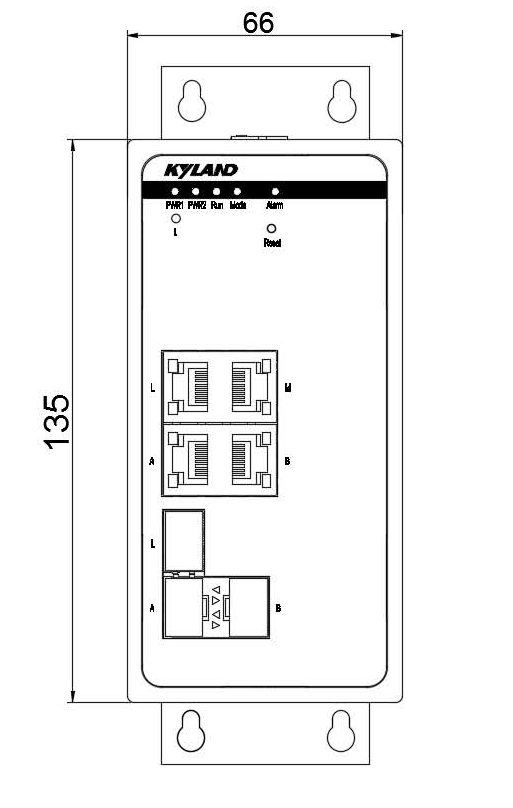

| DT-BGAZ-02 | Panel for panel mounting |
| DT-FCZ-RJ45-01 | Single-port RJ45 dust plug |
