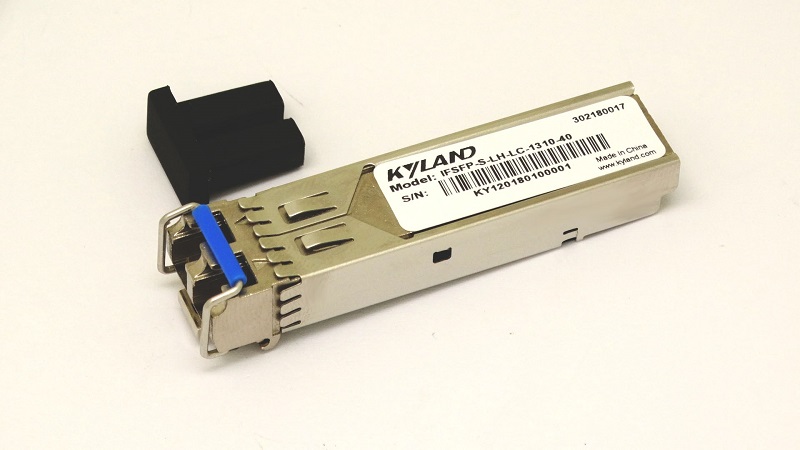

SFP-1FX
Industrial 100M SFP Optical Transceiver Module
Product Overview
Key Features
Transmission rate 155Mb/s
Single power supply 3.3V
Hot-Pluggable capability
Duplex LC connector
Compliant with RoHS Standard
Digital diagnostic monitor compatible with SFF-8472
Specifications
Product Specifications
Standard SFF-8472
IEEE 802.3
Interface LC Connector
Physical Characteristics Dimensions 13.7mm×12.7mm×56.6mm (W×H×D)
Weight 40g
Environmental Limits Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Ambient Relative Humidity 5~95% (non-condensing)
Quality Assurance Warranty period 3 years
Approvals RoHS
Mechanical Drawing
Ordering Information

Product Model

Product Description

Type

Connector

Center Wavelength

Transmission   Distance

Coupled Fiber

IFSFP-M-LX-LC-1310-2-DDM

Multi Mode

LC

1310nm

2km

50/125μm MMF

62.5/125μm MMF

IFSFP-S-LH-LC-1310-40-DDM

Single Mode

LC

1310nm

40km

10/125μm SMF

IFSFP-S-LH-LC-1550-60-DDM

Single Mode

LC

1550nm

60KM

9/125μm SMF

IFSFP-S-LH-LC-1550-80-DDM

Single Mode

LC

1550nm

80KM

9/125μm SMF



100Base-FX SFP (155Mbit/s) Parameter Table

Property

LX

LH

LH

ZX

Type

Multi Mode(M)

Single Mode(S)

Single Mode(S)

Single Mode(S)

Center Wavelength(nm)

1310

1310

1550

1550

Transmission Distance(km)

2

40

60

80

Application Range of Transmission Distance(km)

0~2

0~40

10~60

10~80

Coupled Fiber

62.5/125μm MMF

50/125μm MMF

10/125μm

SMF

9/125μm SMF

9/125μm SMF

Average Optical Output Power

Min.(dBm)

-20

-12

-5

-5

Max.(dBm)

-14

-4

0

0

Receiver Sensitivity (dBm)

-31

-34

-34

-34

Maximum Input Power (dBm)

-3

-3

-3

-3
