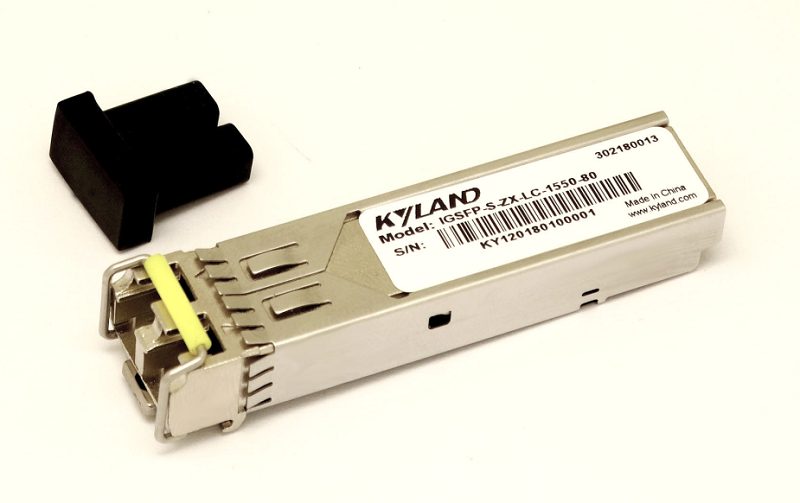

SFP-1G
Industrial Gigabit SFP Optical Transceiver Module
Product Overview
Key Features
Transmission rate 1.25Gb/s
Single power supply 3.3V
Hot-Pluggable capability
Duplex LC connector
Compliant with RoHS Standard
Digital diagnostic monitor compatible with SFF-8472
Specifications
Product Specifications
Standard SFP MSA
SFF-8472
IEEE802.3
Interface LC Connector
Physical Characteristics Dimensions 13.9mm×12.6mm×58.4mm (W×H×D)
Weight 40g
Environmental Limits Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Ambient Relative Humidity 5~95% (non-condensing)
Quality Assurance Warranty period 3 years
Approvals RoHS
Mechanical Drawing
Ordering Information

Product Model

Product Description

Type



Type



Type

IGSFP-M-SX-LC-850-0.55-DDM

Multi Mode

LC

850nm

0.55KM

62.5/125μm   MMF

50/125μm   MMF

IGSFP-S-LX-LC-1310-10-DDM

Single Mode

LC

1310nm

10KM

10/125μm SMF

IGSFP-S-LH-LC-1310-40-DDM

Single Mode

LC

1310nm

40KM

10/125μm SMF

IGSFP-S-ZX-LC-1550-80-DDM

Single Mode

LC

1550nm

80KM

10/125μm SMF



1000Base-X SFP (1.25Gbit/s) Parameter Table

Property

SX

LX

LH

ZX

Type

Multi Mode(M)

Single Mode(S)

Single Mode(S)

Single Mode(S)

Center Wavelength(nm)

850

1310

1310

1550

Transmission Distance(km)

0.55

10

40

80

Application Range of Transmission Distance(km)

0~0.55

0~10

12~40

27~80

Coupled Fiber

62.5/125μm MMF

50/125μm MMF

10/125μm

SMF

10/125μm

SMF

10/125μm

SMF

Average Optical Output Power

Min.(dBm)

-9.5

-11.5

-2

0

Max.(dBm)

0

-3

3

5

Receiver Sensitivity (dBm)

-17

-19

-23

-23

Maximum Input Power (dBm)

0

-3

-3

-3
