Supports VLAN and PVLAN
Supports GVRP
Supports port aggregation
Supports flow control
Supports port rate limit
Supports broadcast storm suppression
Supports static ARP
Supports ARP aging time
Supports static MAC address
Supports MAC aging time
Supports MAC learning setting

Supports DHP and DRP
Supports DT-Ring, DT-Ring+, and DT-VLAN
Supports STP/RSTP/MSTP

Supports IGMP snooping，IGMP query
Supports GMRP
Supports static multicast

Supports IEEE 802.1x
Supports HTTPs/SSL
Supports SSH
Supports RADIUS
Supports TACACS+
Supports user grading
Supports user login timeout
Supports enhanced password
Supports port isolate
Supports MAC learing limit
Supports remote access serurity

Supports ACL
Supports 802.1p(CoS),DSCP
Supports SP and WRR queuing

Supports Console, Telnet, and Web management
Supports SNMPv1/v2c/v3 and can managed by Kyvision
Supports IEC61850 MMS server
Supports software update via FTP
Supports configuration upload/download via FTP/HTTP
Supports the IP/MAC address conflict alarm, power alarm, temperature alarm,port alarm, CPU/
Memory usage alarm，config change alarm，and ring alarm
Supports RMON
Supports port mirroring
Supports Syslog，save to flash or send to log server
Supports LLDP
Supports Link-check

Supports DHCP server/client/snooping/option 82

Supports SNTP server/client
Supports RTC

IEEE 802.3i(10Base-T)
IEEE 802.3u(100Base-TX and 100Base-FX)
IEEE 802.3ab(1000Base-T)
IEEE 802.3z(1000Base-SX/LX)
IEEE 802.3ad (port aggregation)
IEEE 802.3x(flow control)
IEEE 802.1p(priority)
IEEE 802.1Q(VLAN)
IEEE 802.1w(RSTP)

Priority queue: 8
Number of VLANs: 4094
VLAN ID: 1–4093
Number of multicast groups: 511
MAC table: 8K
Packet buffer: 4.1Mbit
Packet forwarding rate: 41.7Mpps
Switching delay:<10μs

Gigabit ports:1000Base-X, SFP port;10/100/1000Base-T(X), RJ45 port
Console port: RS232,RJ45
Alarm contact: 3-pin 5.08mm-spacing plug-in terminal block

LED on front panel
Running LED: Run
Alarm LED: Alarm
Power LED: PWR1, PWR2
Port LED: Link/ACT
Port speed LED: Speed

LED on rear panel
Port LED: Link/ACT
Port speed LED: Speed

Power input:
L2: 24-48VDC(18-72VDC),
HV: 100-240VAC,50/60Hz;110-220VDC (85-264VAC/77-300VDC)
Power terminal: 5-pin 5.08 mm-spacing plug-in terminal block
Power consumption:<35w
Overload protection: Support
Reverse connection protection: Support
Redundancy protection: Support

Housing: Metal
Cooling: Natural cooling, fanless
Protection Class: IP40

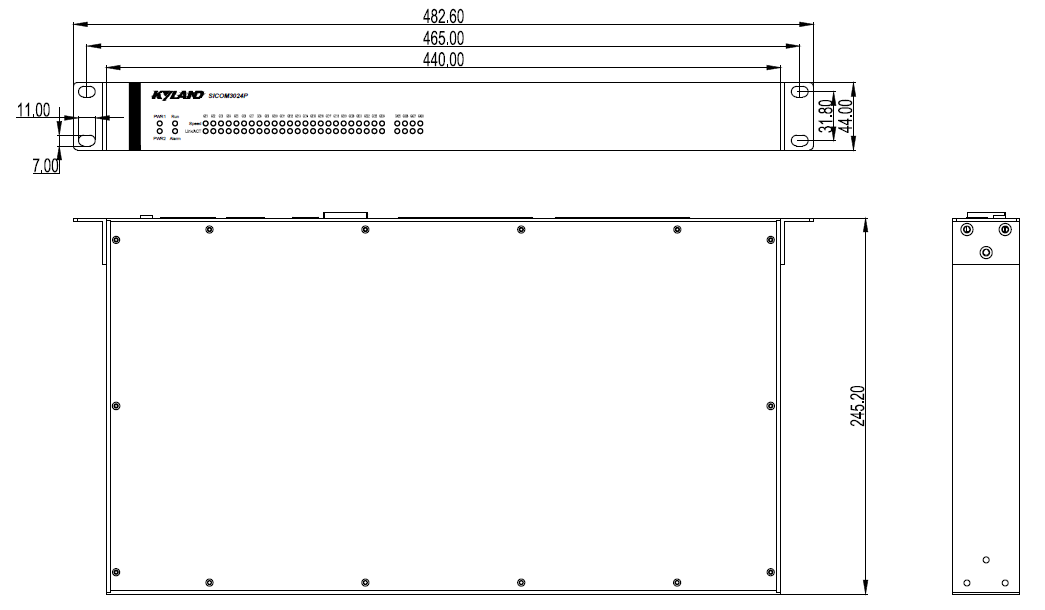

Dimensions(WxHxD): 482.6mm×44mm×245mm
Weight: 4Kg
Mounting: 19 inch 1U rack mounting

Operating temperature: -40°C to +85°C
Storage temperature: -40°C to +85°C
Ambient Relative Humidity: 5% - 95% (non-condensing)

MTBF: 355979 hrs
Warranty: 5 years

CE/FCC (Pending)

EMI:
FCC CFR47 Part 15,EN55022/CISPR22,Class A

EMS:
IEC61000-4-2(ESD) ±6kV(contact),±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz-2GHz)
IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV
IEC61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV
IEC61000-4-6(CS) 3V(10kHz-150kHz);10V(150kHz-80MHz)
IEC61000-4-8(power frequency magnetic field) 100A/m(cont.),1000A/m(1s-3s)
IEC61000-4-9(pulsed magnetic field) 1000A/m
IEC61000-4-10(damped oscillation) 100A/m
IEC61000-4-12(oscillatory wave) 2.5kV/CM,1kV/DM
IEC61000-4-16(common mode conduction) 30V(cont.),300V(1s)

Machinery:
IEC60068-2-6 (vibration)
IEC60068-2-27 (shock)
IEC60068-2-32 (free fall)
