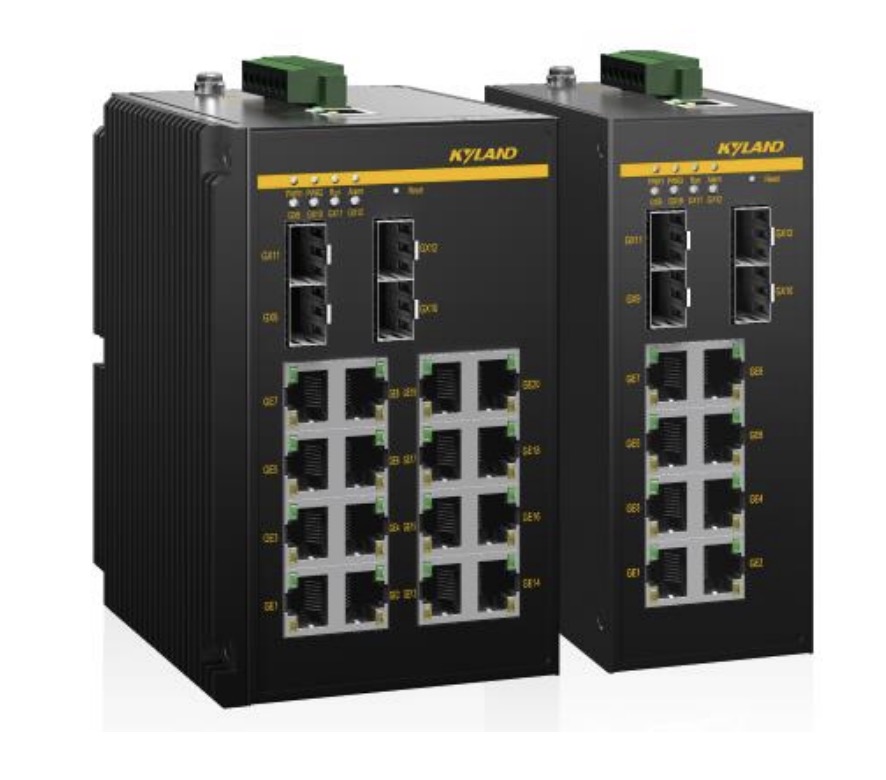

SICOM3000L is Layer 2 DIN-Rail Managed Industrial Ethernet Switch. It provides 4 10/100/1000Base-X SFP ports, 8
10/100/1000Base-T or 16 10/100/1000Base-T copper ports , 24/48 dual power input. SICOM3000L supports DT- Ring
(recovery time<50ms), DRP/DHP (recovery time<20ms), STP/RSTP/MSTP, VLAN, Multicast , QoS, SSH and many other
Layer 2 software features, and supports CLI, Telnet, Web management methods, Kyvision centralized management
based on SNMPv1/v2c/v3. SICOM3000L is especially designed for harsh environments with wide operating
temperature range, EMC level 3, IP40 protection class, strong vibration - resistent mounting clip for DIN-Rail
installation, and can be deployed in Factory automation, Transportation, Oil & gas, wind power, distribution network
automation and many other industrial applications.
Supports 4 100Base-X, 1000Base-X SFP ports, 8 10/100/1000Base-T or 16 10/100/1000Base-T copper ports
Supports Redundancy protocols: DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms),
STP/RSTP/MSTP
Supports Network Security: HTTPS/SSL, SSH, TACACS+, IEEE802.1X, Radius, User Classification, MAC address
binding with switch ports
Supports CLI, Telnet, WEB management methods, Kyvision centralized management based on
SNMPv1/v2c/v3
Supports DDM(SFP port)
Supports IP40 protection
| Software functions | |
| Switching | Supports VLAN, PVLAN Supports GVRP Supports port aggregation, LACP Supports port flow control Supports Rate limit based on flow (ACL Rate Limiter) Supports Global broadcast storm suppression (QOS Storm Policing) |
| Multicast | Supports IGMP snooping Supports GMRP Supports static multicast |
| Routing protocol | Supports static routing |
| Network Security | Supports HTTPS/SSL Supports SSH Supports TACACS+ Supports IEEE802.1X Supports RADIUS Supports User Classification |
| Service Quality | Supports QoS, 802.1p(CoS, DSCP Supports SP, WRR queue scheduling Supports ACL |
| Management and Maintenance | Supports Console, Telnet, WEB management methods Supports SNMPv1/v2c/v3, Kyvision centralized management Kytools IP manager management Supports software upgrade by FTP/TFTP Supports Power alarm, IP/MAC conflict alarm, Memory/CPU usage alarm, Port alarm, Ring alarm, Port traffic alarm, CRC error and packet lose alarm, SFP port RX power alarm and TX power alarm Supports DDM (SFP port) Supports loop detection Supports RMON Supports port mirroring Supports Syslog Supports LLDP Supports Link-check |
| IP Management | Supports DHCP server/snooping/client Supports DHCP relay Supports DHCP option82/66/67 |
| Clock Management | Supports SNTP Client Supports NTPv4 Server & Client |
| Redundancy | Supports DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms Supports DRP/DHP with the recovery time<20ms Supports STP/RSTP/MSTP/ |
| Technical Specification | |
| Interface | Gigabit Port 100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP slot 10/100/1000Base-T(X), RJ45 port, Auto MDI/MDI-X connection Console Port RJ45, RS232 Alarm Contact 3-pin 5.08mm-spacing plug-in terminal block, 250VAC/220VDC Max, 2A Max |
| Switch Properties | Priority Queues 8 Number of VLANs 4K VLAN ID 1～4094 Number of Multicast Groups 8K MAC Table 8K Packet Buffer 4Mbit Packet Forwarding Rate 17.9Mpps (4GX8GE) 29.8Mpps (4GX16GE) Switching Delay <5μs Jumbo frame 9.6KB |
| LED | LEDs on Front Panel Running LED: Run Alarm LED: Alarm Power LED: PWR1,PWR2 Ring LED: Ring Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port) |
| Button | Reset: Reboot and restore default configuration |
| Power Requirement | Power Input 100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC) 24-48VDC(18-72VDC) 12-24VDC(9-36VDC) Power Terminal 5-pin 5.08 mm-spacing plug-in terminal block (L2/L5) 3-pin 7.62 mm-spacing plug-in terminal block (HV) Power Consumption <16W (4GX8GE) <20W (4GX16GE) Overload Protection Support Reverse Protection Support Redundancy Protection Support (24/48VDC) |
| Physical Characteristics | Housing Metal Cooling Natural convection, fanless Protection Class IP40 Dimension 88mm×135mm×137mm (4GX8GE) (W×H×D) 102mm×135mm×137mm (4GX16GE) (W×H×D) Weight 1.5Kg (4GX8GE) 1.9Kg (4GX16GE) Mounting DIN-Rail or Panel Mounting |
| Environmental Limit | Operating Temperature -40℃～+75℃ Storage Temperature -40℃～+85℃ Ambient Relative Humidity 5～95% (non-condensing) |
| Warranty | MTBF 1317486h (4GX8GE) 1097144h (4GX16GE) Warranty 5 years |
| Approvals | CE, FCC(Pending) EMC: EN 55032/35, EN 61000-6-4, EN 61000-6-2 Rail Traffic: EN 50121-4 IEC 62368-1, EN 62368-1 |
| Industrial Standard | EMI: FCC CFR47 Part 15,EN55032/CISPR22,Class A EMS: IEC61000-4-2(ESD) ±6kV(contact),±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz～2GHz) IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±1kV IEC61000-4-6(CS) 10V(150kHz～80MHz) Machinery: IEC60068-2-6 (vibration) IEC60068-2-27 (shock) IEC60068-2-32 (free fall) Climatic environmental: IEC60068-2-1 Cold test IEC60068-2-2 Dry heat test IEC60068-2-14 Change of temperature test IEC60068-2-30 Damp heat cyclic test |
| Technical Parameter | Standard IEEE 802.3i (10Base-T IEEE 802.3u (100Base-T and 100Base-FX IEEE 802.3ab (1000Base-T IEEE 802.3z (1000Base-SX/LX IEEE 802.3ad (Link aggregation IEEE 802.3x (Flow Control IEEE 802.1p (Class of Service) IEEE 802.1Q (VLAN) IEEE 802.1d (STP) IEEE 802.1w (RSTP) IEEE 802.1s (MSTP) IEEE 802.1x (Network Access Control IEEE 802.1ab (LLDP) |

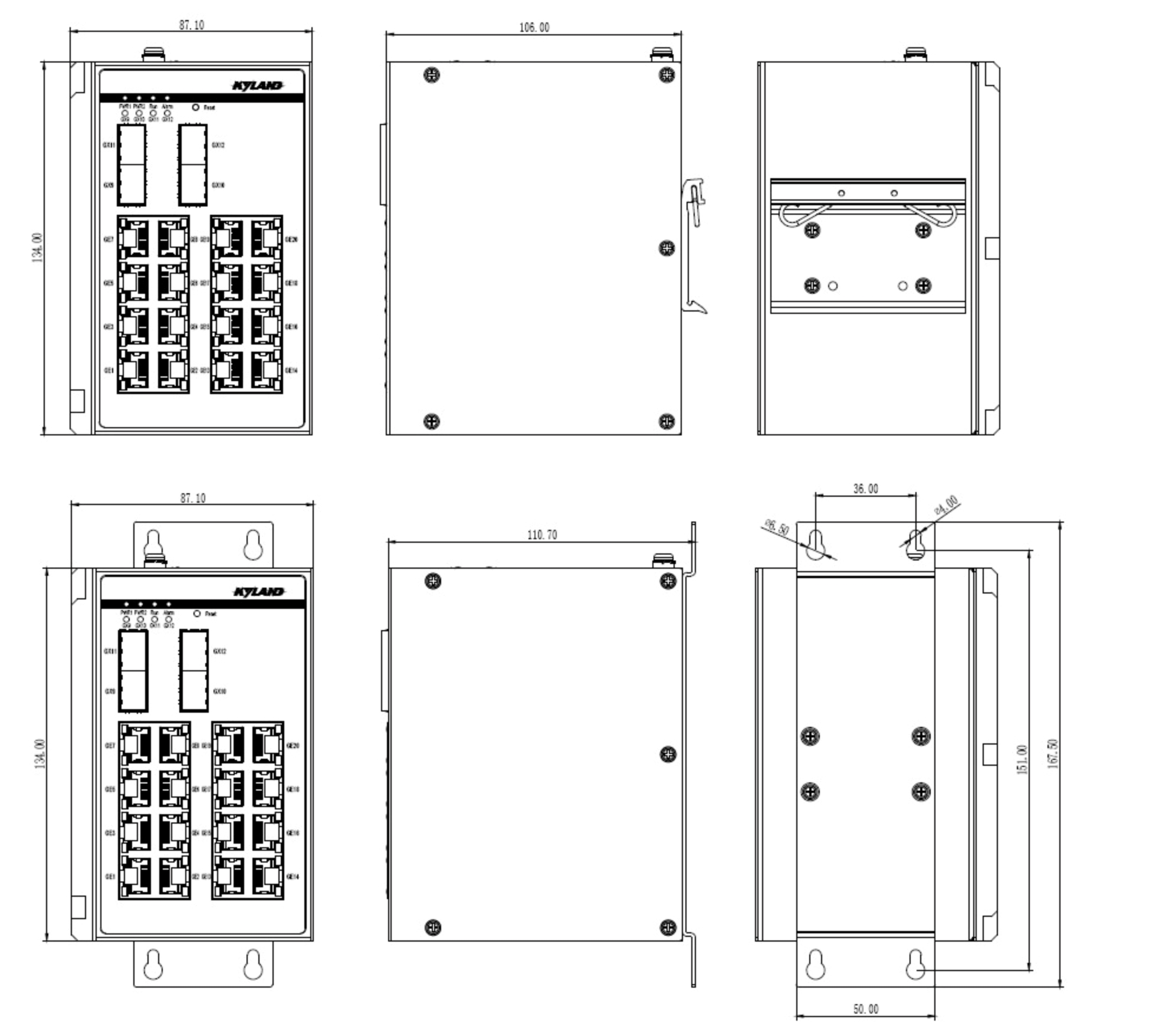

88mm×135mm×137mm(W×H×D):
Ordering Information
|
Product Model |
SICOM3000L-Ports-PS1-PS2 |
|
Code definition |
Code selection |
|
Ports |

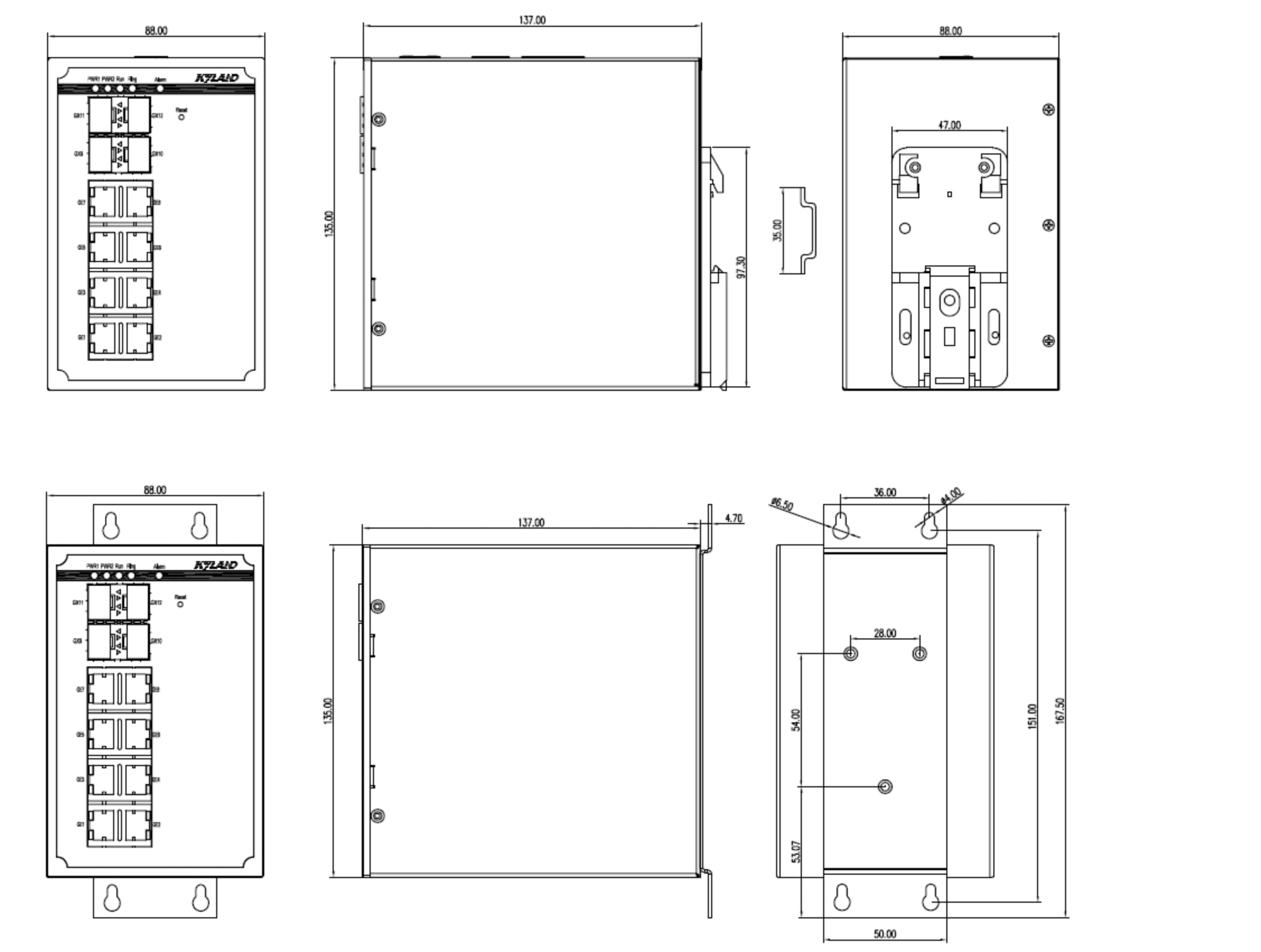

88mm×135mm×137mm(W×H×D): 4GX8GE= 4×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports;

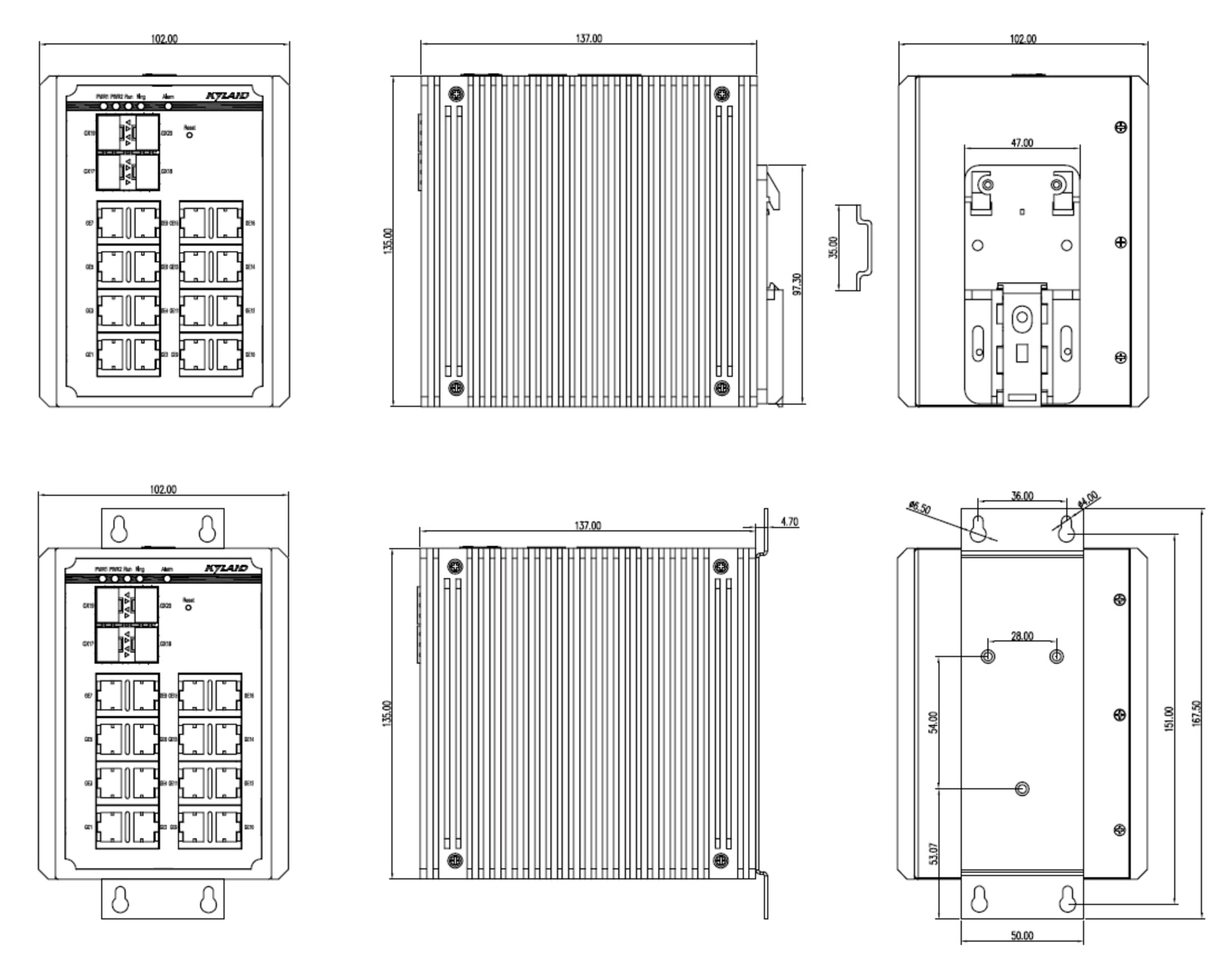

102mm×135mm×137mm(W×H×D): 4GX16GE= 4×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports; 16×10/100/1000Base-T(X) RJ45 ports |
|
PS1-PS2 |
L2-L2=24-48VDC (18-72VDC), redundant power inputs L5-L5=12-24VDC (9-36VDC), redundant power inputs HV=100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC), single power input |
Accessories
|
Accessory Model |
Description |
|
SFP module |
See the selection table of industrial SFP module. |
|
DT-BGAZ-02 |
Panel for panel mounting |
|
DT-FCZ-RJ45-01 |
Single-port RJ45 dust plug |
Kyland-SICOM3000L-Datasheet-EN.pdf
